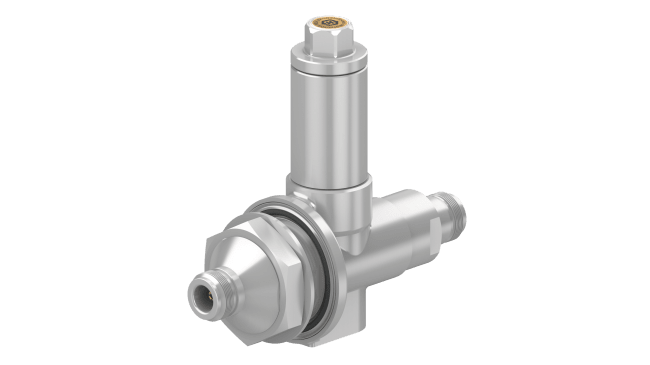

3409.17.0031-EX
| H+S | |
|---|---|
| Side of bulkhead | protected side |
| Gas tube | Yes DC, GDT included, replaceable, 9071.99.0748 (SEMPER, 90 V) |
| DC current | ≤ 2.5 A at 48 V , 2.5 A |
| PIM 3rd order | -150-150 dBc typ. , -150 dBc typ. |
| AISG insertion loss | 0.1 dB |
| Moisture resistance according | MIL-STD-202, Method 106 |
| Impedance | 50 Ω |
| Power avg. / peak | 1000 W / 10000 W 500 W / 10000 W |
| Vibration according | MIL-STD-202, Method 204, Cond. A |
| Insertion loss | 0.150.15 dB |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Residual pulse energy (typ.) | 250 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
| Product description | High-power/low-IM GDT hybrid technology |
| Thermal shock according | MIL-STD-202, Method 107, Cond. B |
| DC supply voltage | 48 V |
| Insertion loss typical | 0.15 dB |
| Product code | 3409.17.0031-EX |
| Main path connectors | Port 1: unprotected, N jack (female)Port 2: protected, N jack (female) |
| Housing material / plating | Brass / SUCOPLATE (R) Plating |
| Turn-off time | 20 sec. typically at 2.0 A and 25°C ambient temperature |
| Ingress protection (IP Rating) | IP65 |
| AISG return loss | 20 dB |
| Frequency frame | 806 MHz to 2500 MHz |
| Mounting and grounding | MH74 (bulkhead mounting), M8 (screw), brk (bracket) |
| Return loss typical | 20.8 dB , 2626 dB |
| Surge current handling capability | 30 kA single, 20 kA multiple (test pulse 8/20 µs) |
| Center contact, material / plating | Port 1: Copper Beryllium Alloy / Gold Plating (without Nickel underplating)Port 2: Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| Recovery time | 7 sec. at 25°C ambient temperature |
| EMP can be install reversed | YES |
| AISG frequency | 2176 MHz |
| Frequency range | 806 MHz ... 960 MHz1710 MHz ... 2500 MHz |
| Mating cycles | 500 |
| Peak power frame | 10000 W |
| CW power frame | 500 W |
| Weight | 577 g |
