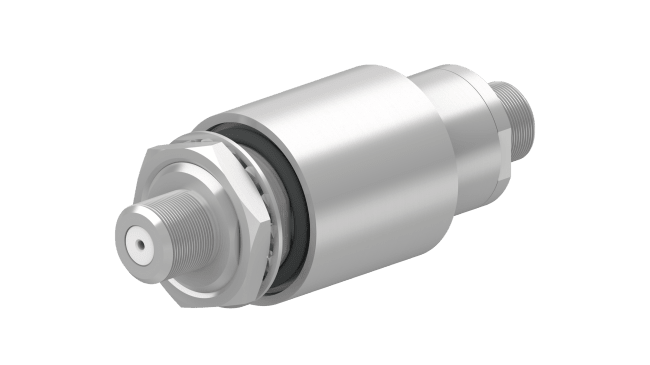

3406.99.0016
H+S | |
---|---|
Side of bulkhead | protected side |
Moisture resistance according | MIL-STD-202, Method 106 |
Power avg. / peak | 12 W / - |
Vibration according | MIL-STD-202, Method 204, Cond. D |
Insertion loss | 0.2 dB |
Storage temperature | -40 °C ... 85 °C |
Residual pulse energy (typ.) | 350 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
Thermal shock according | MIL-STD-202, Method 107, Cond. B |
Insertion loss typical | 0.4 dB |
Product code | 3406.99.0016 |
Main path connectors | Port 1: unprotected, F jack (female)Port 2: protected, F jack (female) |
Housing material / plating | Brass / SUCOPLATE (R) Plating |
Ingress protection (IP Rating) | IP67 |
Static spark voltage | 90 V, +/- 20 % (@ 100 V/s) |
Details | CAS: 7439-92-1 Lead |
Mounting and grounding | MH71 (bulkhead mounting) |
Return loss typical | 20 dB , 20 dB |
Surge current handling capability | 10 kA single, 5 kA multiple (test pulse 8/20 µs) |
Center contact, material / plating | Port 1: Bronze / Silver PlatingPort 2: Bronze / Silver Plating |
EMP can be install reversed | YES |
Frequency range | 0 MHz ... 2000 MHz |
DC current | 3 A |
Mating cycles | 30 |
Inline design | YES |
Weight | 85 g |
Exemptions | 6c |
Gas tube | Yes DC, GDT included, not replaceable |
Directive | RoHS 2011/65/EU and (EU) 2015/863 |
Impedance | 75 Ω |
Operation temperature | -40 °C ... 85 °C |
Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
Product description | Slim Line GDT technology |
Frequency frame | 0 MHz to 3000 MHz |
Regulation | REACH 1907/2006 Article 33 SVHC |
CW power frame | 12 W |
