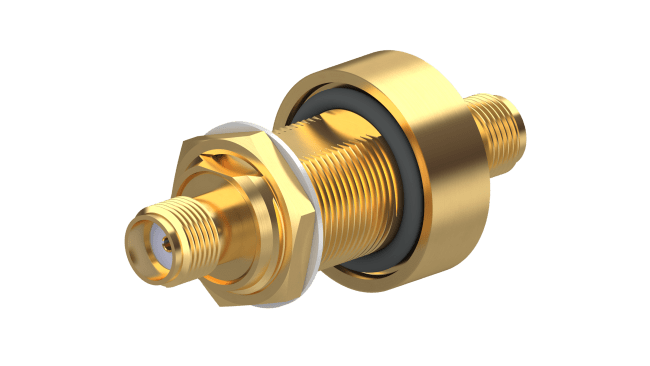

| Gender Protected Side |
jack (female) |
| Frequency min. Range |
5600 MHz, N MHz |
| Temperature Shock |
MIL-STD-202, Method 107, Cond. B |
| CW Power Frame |
60 W |
| Current Handling 8/20 |
10 single / 5 multiple |
| Vibration |
MIL-STD-202, Method 204, Cond. D |
| Weight |
24 g |
| IP Rating |
IP20 |
| Connector Port 1 |
SMA |
| Insertion Loss Frame |
0.2 dB |
| Frequency min. Frame |
N MHz |
| Residual Pulse Energy |
250 µJ |
| Description Port2 |
protected |
| Frequency max. Frame |
5800 MHz |
| Description Port1 |
unprotected |
| Center Contact Plating (Port 2) |
Gold Plating (without Nickel underplating) |
| Right Angle |
N |
| Insertion Loss Range |
0.2 dB, 0.2 dB |
| PIM 3rd Frame |
not specified |
| Center Contact (Port 1) |
Copper Beryllium Alloy |
| Return Loss Range |
20 dB, 18.5 dB |
| Gender Unprotected Side |
jack (female) |
| Gas Tube |
Yes DC, GDT included |
| Center Contact (Port 2) |
Copper Beryllium Alloy |
| Return Loss Frame |
18.5 dB |
| Connector Port 2 |
SMA |
| External Remarks |
Waterproof degree for unprotecded side in mated condition: IP65 acc. IEC 60529. |
| Moisture Resistance |
MIL-STD-202, Method 106 |
| Mounting Hole |
3 |
| Highlight4 |
Fix installed GDT, static sparkover-voltage nom. 200 V |
| Center Contact Plating (Port 1) |
Gold Plating (without Nickel underplating) |
| Highlight3 |
The protector can also be installed reversely |
| Highlight2 |
DC continuity for remote powering |
| 2002/96/EC |
special marking needed |
| Class |
1217 |
| 2006/1907/EC (REACH) |
compliant |
| Housing |
Brass |
| RF Protector Description |
Slim Line GDT technology |
| Frequency max. Range |
5600 MHz , 5800 MHz |
| Housing Plating |
Silver / Gold Plating |
| Highlight1 |
Broad-band design |
| ID |
3406.19.0003 |
| Impedance |
50 |
| 2011/65/EC |
compliant acc. Annex III |
| Number of Matings |
500 |
| Operating Temperature max. |
85 °C |
| Operating Temperature min. |
-40 °C |
| OBJECT_ID |
8030702 |
