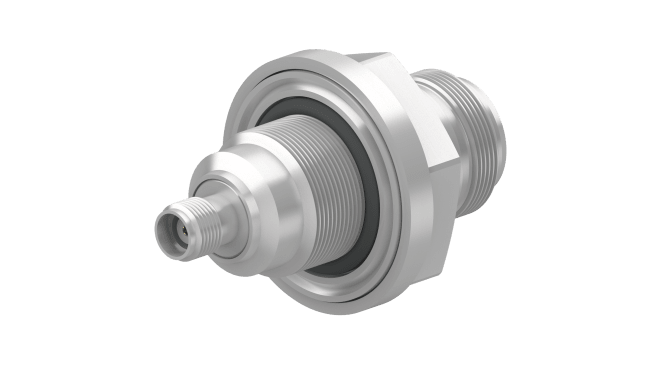

3406.00.0030
H+S | |
---|---|
Side of bulkhead | protected side |
Gas tube | Yes DC, GDT included, not replaceable |
Impedance | 50 Ω |
Vibration according | MIL-STD-202, Method 204, Cond. D |
Operation temperature | -40 °C ... 85 °C |
Residual pulse energy (typ.) | 250 µJ (test pulse 4 kV 1.2/50 µs; 2 kA 8/20 µs) |
Product description | Slim Line GDT technology |
Insertion loss typical | 0.2 dB |
Product code | 3406.00.0030 |
Main path connectors | Port 1: unprotected, N jack (female)Port 2: protected, SMA jack (female) |
Housing material / plating | Stainless Steel |
Ingress protection (IP Rating) | IP65 |
Static spark voltage | 200 V, +/- 25 % (@ 100 V/s) |
Frequency frame | 0 MHz to 3000 MHz |
Return loss typical | 20 dB |
Surge current handling capability | 10 kA single, 5 kA multiple (test pulse 8/20 µs) |
Center contact, material / plating | Port 1: Copper Beryllium Alloy / Gold Plating (Nickel underplated)Port 2: Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
EMP can be install reversed | YES |
Mating cycles | 500 |
CW power frame | 60 W |
Inline design | YES |
Weight | 70 g |
