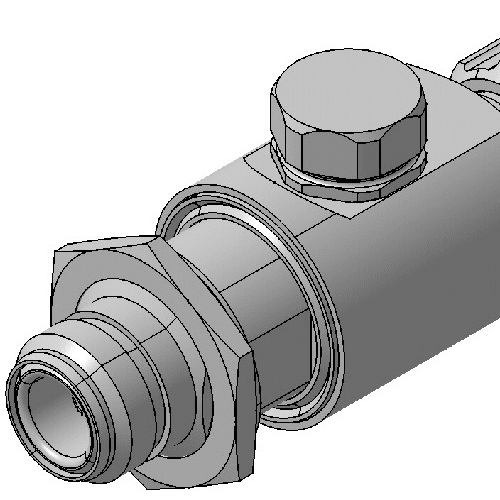

3402.17.0089
Gender Protected Side | jack (female) |
Side of Bulkhead | protected side |
CW Power Frame | 140W |
Temperature Shock | MIL-STD-202, Method 107, Cond. B |
Current Handling 8/20 | 30 single / 20 multiple |
Vibration | MIL-STD-202, Method 204, Cond. D |
Weight | 155g |
IP Rating | IP65 |
Connector Port 1 | false |
Insertion Loss Frame | 0.2dB |
Frequency min. Frame | 0MHz |
Residual Pulse Energy | 350µJ |
Description Port2 | protected |
Frequency max. Frame | 2500MHz |
Description Port1 | unprotected |
Center Contact Plating (Port 2) | Gold Plating |
Right Angle | false |
PIM 3rd Frame | not specified |
Center Contact (Port 1) | Brass |
Gender Unprotected Side | plug (male) |
Gas Tube | Yes DC, GDT not included |
Center Contact (Port 2) | Copper Beryllium Alloy |
Return Loss Frame | 20dB |
Connector Port 2 | false |
Moisture Resistance | MIL-STD-202, Method 106 |
Mounting Hole | 25 |
Highlight5 | Data refer to GDT 9071.99.0547, 230 V |
Highlight4 | Delivered without gas discharge tube |
Center Contact Plating (Port 1) | Gold Plating |
Highlight3 | The protector can also be installed reversely |
Highlight2 | DC continuity for remote powering |
2002/96/EC | special marking needed |
Class | 1217 |
2006/1907/EC (REACH) | compliant |
Housing | Brass |
RF Protector Description | GDT technology up to 2.5 GHz |
Housing Plating | SUCOPLATE (R) Plating |
Highlight1 | Broad-band design |
ID | 3402.17.0089 |
Impedance | 50 |
2011/65/EC | compliant |
Number of Matings | 500 |
Operating Temperature max. | 85°C |
Operating Temperature min. | -40°C |
