| Gender Protected Side |
jack (female) |
| Thread |
M8 |
| Frequency min. Range |
1710 MHz, 806 MHz |
| PIM 3rd Range |
150 dBc typ., 150 dBc typ. |
| Temperature Shock |
MIL-STD-202, Method 107, Cond. B |
| CW Power Frame |
1500 W |
| Current Handling 8/20 |
80 multiple |
| Vibration |
MIL-STD-202, Method 204, Cond. A |
| Weight |
415 g |
| IP Rating |
IP65 |
| CW Power Range |
3000 W, 1500 W |
| Connector Port 1 |
7/16 |
| Insertion Loss Frame |
0.15 dB |
| Frequency min. Frame |
806 MHz |
| Residual Pulse Energy |
10 µJ |
| Description Port2 |
protected |
| Description Port1 |
unprotected |
| Frequency max. Frame |
2500 MHz |
| Center Contact Plating (Port 2) |
Silver Plating |
| Right Angle |
N |
| Insertion Loss Range |
0.15 dB, 0.15 dB |
| PIM 3rd Frame |
150 dBc max. |
| Center Contact (Port 1) |
Brass |
| Return Loss Range |
26 dB, 26 dB |
| Gender Unprotected Side |
plug (male) |
| Gas Tube |
No DC / shorted QW or LC |
| Center Contact (Port 2) |
Copper Beryllium Alloy |
| Return Loss Frame |
20.8 dB |
| Connector Port 2 |
7/16 |
| Current Handling 10/350 |
40 multiple |
| Moisture Resistance |
MIL-STD-202, Method 106 |
| Center Contact Plating (Port 1) |
Silver Plating |
| Highlight2 |
The protector can also be installed reversely |
| 2002/96/EC |
special marking needed |
| Class |
1217 |
| 2006/1907/EC (REACH) |
compliant |
| Housing |
Brass |
| RF Protector Description |
Quarter-wave stub technology |
| Frequency max. Range |
960 MHz , 2500 MHz |
| Housing Plating |
SUCOPLATE (R) Plating |
| Highlight1 |
Broad-band design |
| ID |

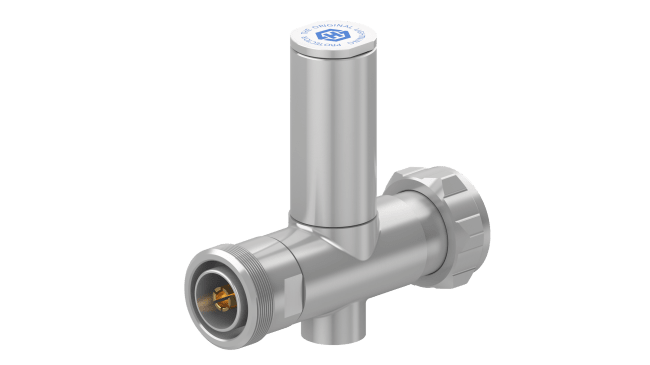

3400.41.0204 |
| Impedance |
50 |
| 2011/65/EC |
compliant |
| Number of Matings |
500 |
| Operating Temperature max. |
85 °C |
| Operating Temperature min. |
-40 °C |
| OBJECT_ID |
7140204 |
