Produktnummer: 23026613
Huber Suhner

Gender Protected Side jack (female)
Thread M8
Side of Bulkhead protected side
CW Power Frame 3000W
Temperature Shock MIL-STD-202, Method 107, Cond. B
Current Handling 8/20 50 multiple
Vibration MIL-STD-202, Method 204, Cond. A
Weight 573g
IP Rating IP65
Connector Port 1 7/16
Insertion Loss Frame 0.1dB
Frequency min. Frame 380MHz
Residual Pulse Energy 5µJ
Description Port2 protected
Frequency max. Frame 512MHz
Description Port1 unprotected
Center Contact Plating (Port 2) Silver Plating
Right Angle false
PIM 3rd Frame 150 dBc typ.
Center Contact (Port 1) Copper Beryllium Alloy
Gender Unprotected Side jack (female)
Gas Tube No DC / shorted QW or LC
Center Contact (Port 2) Copper Beryllium Alloy
Return Loss Frame 20dB
Connector Port 2 7/16
Current Handling 10/350 25 multiple
Moisture Resistance MIL-STD-202, Method 106
Mounting Hole 74
Center Contact Plating (Port 1) Silver Plating
2002/96/EC special marking needed
Class 1217
2006/1907/EC (REACH) compliant
Housing Brass
RF Protector Description Quarter-wave stub technology
Housing Plating SUCOPLATE (R) Plating
Highlight1 The protector can also be installed reversely

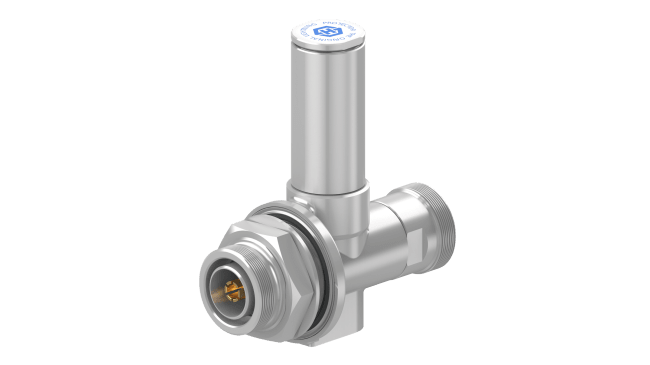

ID 3400.41.0196
Impedance 50
2011/65/EC compliant
Number of Matings 500
Operating Temperature max. 85°C
Operating Temperature min. -40°C
OBJECT_ID 7140500
