Produktnummer: 84048180
Huber Suhner

Gender Protected Side jack (female)
Side of Bulkhead protected side
CW Power Frame 300W
Temperature Shock MIL-STD-202, Method 107, Cond. B
Current Handling 8/20 50 multiple
Vibration MIL-STD-202, Method 204, Cond. A
Weight 103g
IP Rating IP68
Connector Port 1 false
Insertion Loss Frame 0.2dB
Frequency min. Frame 2000MHz
Residual Pulse Energy 0.2µJ
Description Port2 protected
Frequency max. Frame 6000MHz
Description Port1 unprotected
Center Contact Plating (Port 2) Gold Plating (without Nickel underplating)
Right Angle false
PIM 3rd Frame not specified
Center Contact (Port 1) Brass
Gender Unprotected Side plug (male)
Gas Tube No DC / shorted QW or LC
Center Contact (Port 2) Copper Beryllium Alloy
Return Loss Frame 20dB
Connector Port 2 false
Current Handling 10/350 25 multiple
External Remarks Ordering information for optional mounting/grounding accessories: Grounding ring 9075.99.0027, terminal lug for cable 6AWG/16 mm^2 (diameter 6 mm), material: copper, tin plated
Moisture Resistance MIL-STD-202, Method 106
Mounting Hole 170
Center Contact Plating (Port 1) Gold Plating (without Nickel underplating)
Highlight3 The protector can also be installed reversely
Highlight2 Space saving inline design
2002/96/EC special marking needed
Class 1217
2006/1907/EC (REACH) compliant
Housing Aluminium
RF Protector Description Quarter-wave stub technology
Housing Plating Chromatized
Highlight1 Broad-band design

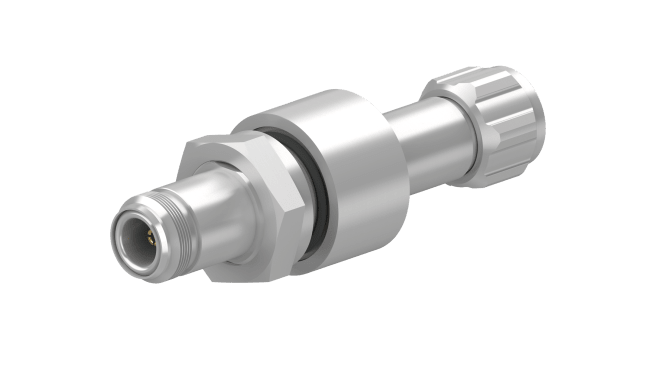

ID 3400.17.0428
Impedance 50
2011/65/EC compliant
Number of Matings 100
Operating Temperature max. 85°C
Operating Temperature min. -40°C
OBJECT_ID 7140495
