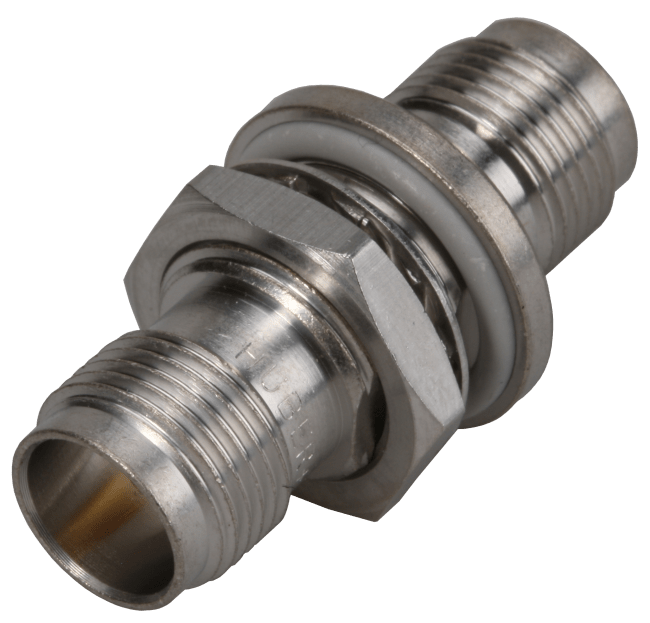

34 TNC-50-0-1/133NE
| Frequency min. Range3 | 8 GHz |
| Frequency min. Range2 | 2 GHz |
| Fastening Nut Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Centre Contact Plating | Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| VSWR Range 3 | 1.9 |
| VSWR Range 2 | 1.5 |
| Outer Contact Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Panel Thickness | 4 mm |
| Adaptor Configuration | within series |
| Weight | 0.0195 kg |
| Interface Standards (2) | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Outer Contact | Brass, Brass |
| Flange Type | round flange |
| Body Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber), VMQ (Silicone rubber) |
| Flange Dimension | others |
| Return Loss Range2 | 14 dB |
| Return Loss Range3 | 10 dB |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Washer Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Washer | Bronze, Bronze |
| Body | Brass, Brass |
| Connector Gender 1 | jack (female) |
| Connector Gender 2 | jack (female) |
| Fastening Nut | Brass, Brass |
| Insulator | PFA / PTFE, PFA / PTFE |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Frequency max. Range2 | 8 GHz |
| Frequency max. Range3 | 11 GHz |
| Connector Series 2 | TNC |
| Connector Series 1 | TNC |
| Connector Description | Bulkhead adaptor jack/jack |
| Frequency max. Range1 | 2 GHz |
| Frequency min. Range1 | N GHz |
| Gender | jack/jack |
| ID | 34_TNC-50-0-1/133_N |
| Impedance | 50 |
| Interface Frequency max. | 11 GHz |
| Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Packaging | Single |
| PATTERN CLASSES | 34 |
| Return Loss Range1 | 26 dB |
| CONNECTOR SHAPE | straight |
| Type Number | 34_TNC-50-0-1/133_NE |
| VSWR Range 1 | 1.11 |
| OBJECT_ID | 3097278 |
