| Frequency min. Range3 |
7GHz |
| Frequency min. Range2 |
3GHz |
| Fastening Nut Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Centre Contact Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| VSWR Range 3 |
1.3 |
| VSWR Range 2 |
1.2 |
| Outer Contact Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Panel Thickness |
4mm |
| Chassis Torque |
2Nm |
| Adaptor Configuration |
within series |
| Weight |
0.0068kg |
| External Remarks |
Hermetically sealed: leak rate < 10^-7 Torr l/s (atm cc/s) O-ring mount bulkhead feedthrough design, leak rate dependent on environmental condition, typ. <= 10^-6 Torr l/s |
| Interface Standards (2) |
IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Outer Contact |
Copper Beryllium Alloy, Copper Beryllium Alloy |
| Flange Type |
round flange |
| Leakage Rate |
10^-6 |
| Body Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Gasket |
FKM (Fluoro elastomer, FPM), FKM (Fluoro elastomer, FPM) |
| Flange Dimension |
others |
| Return Loss Range2 |
20dB |
| Return Loss Range3 |
17dB |
| Centre Contact |
Copper Beryllium Alloy, Copper Beryllium Alloy |
| Washer Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Washer |
Bronze, Bronze |
| Product is Lead-Free Soldered |
false |
| Body |
Copper Beryllium Alloy, Copper Beryllium Alloy |
| Connector Gender 1 |
jack (female) |
| Connector Gender 2 |
jack (female) |
| Fastening Nut |
Brass, Brass |
| Insulator |
PFA / PTFE, PFA / PTFE |
| Highlight2 |
Ingress protection according to IP68 |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1184 |
| 2000/53/EC (ELV) |
not compliant |
| Frequency max. Range2 |
7GHz |
| Frequency max. Range3 |
18GHz |
| Connector Series 2 |
SMA |
| Connector Series 1 |
SMA |
| Connector Description |

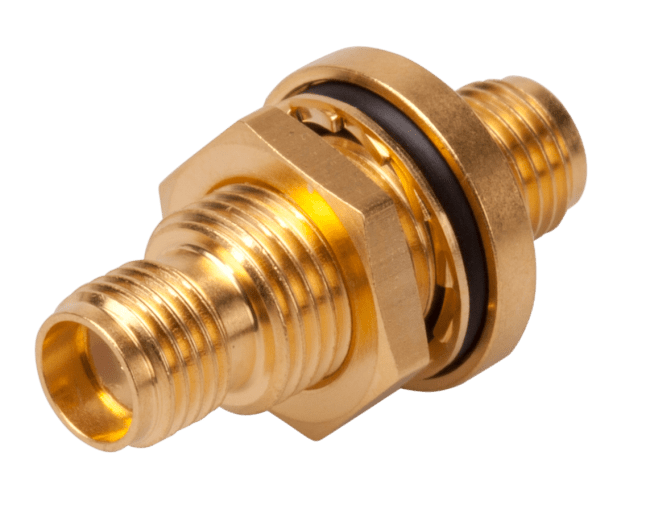

Bulkhead adaptor jack/jack |
| Frequency max. Range1 |
3GHz |
| Frequency min. Range1 |
0GHz |
| Gender |
jack/jack |
| Highlight1 |
Hermetic sealed connector |
| ID |
34_SMA-50-0-3/111_N |
| Impedance |
50 |
| Interface Frequency max. |
18GHz |
| Interface Standards |
IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Junction |
adaptor |
| 2011/65/EC (RoHS) |
not compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
165°C |
| Operating Temperature min. |
-20°C |
| Packaging |
Single |
| PATTERN CLASSES |
34 |
| Return Loss Range1 |
26dB |
| CONNECTOR SHAPE |
straight |
| Type Number |
34_SMA-50-0-3/111_NE |
| VSWR Range 1 |
1.1 |
| OBJECT_ID |
6574546 |
