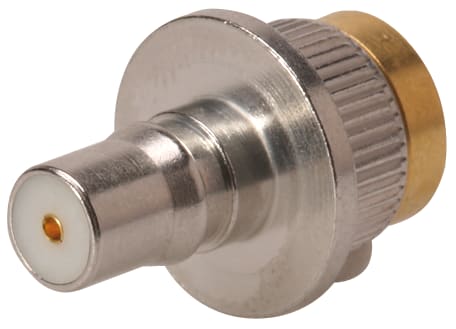

34_MMBX-QMA-50-2/1--_NY
Coaxial adapter
|MMBX - QMA, 50 Ohm, Bulkhead,female/female
| Interface Standards (2) | QMA QLF compliant |
| Outer Contact | Brass, Brass |
| Flange Type | round flange |
| Centre Contact Plating | SUCOPRO / Gold Plating, SUCOPRO / Gold Plating |
| Outer Contact Plating | SUCOPRO / Gold Plating, SUCOPLATE (R) Plating |
| Body Plating | SUCOPLATE (R) Plating, SUCOPRO / Gold Plating |
| Flange Dimension | others |
| Adaptor Configuration | between series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Product is Lead-Free Soldered | not soldered |
| Weight | 0.0054kg |
| Body | Brass, Brass |
| Connector Gender 1 | jack (female) |
| Connector Gender 2 | jack (female) |
| Insulator | LCP (Liquid crystal polymer), PFA / PTFE |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Connector Series 2 | QMA |
| Connector Series 1 | MMBX |
| Connector Description | Adaptor jack/jack |
| Gender | jack/jack |
| Highlight1 | QuickLock Interface |
| ID | 34_MMBX-QMA-50-2/1--_N |
| Impedance | 50 |
| Interface Frequency max. | 12.4GHz |
| Interface Standards | SUHNER-MMBX |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 100 |
| Operating Temperature max. | 85°C |
| Operating Temperature min. | -40°C |
| Packaging | Tray |
| PATTERN CLASSES | 34 |
| CONNECTOR SHAPE | straight |
| Type Number | 34_MMBX-QMA-50-2/1--_NY |
| OBJECT_ID | 3830919 |
