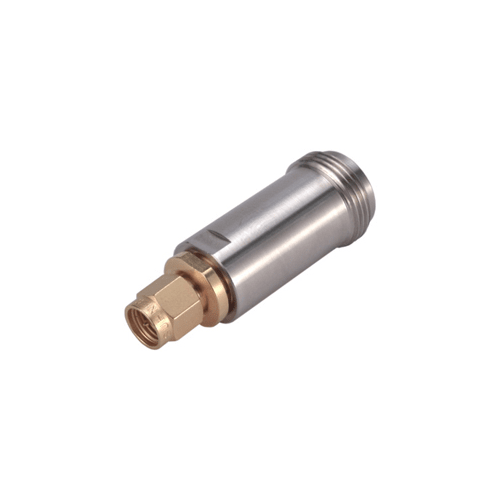

33_SMA-N-50-51/1--_NE

Produktnummer: 22660181
Huber Suhner
Lagerbeholdning:

Coaxial adapter
|SMA-precision - N, 50 Ohm, male/female

Interface Standards (2) IEC 60169-16_MIL-STD-348A/402_CECC 22210
Outer Contact Stainless Steel, Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated), Gold Plating (Nickel underplated)
Outer Contact Plating Gold Plating (Nickel underplated), Passivated (Plating)
Phase Tolerance 0.1mm
Body Plating Passivated (Plating), Gold Plating (Nickel underplated)
Gasket VMQ (Silicone rubber)
Adaptor Configuration between series
Centre Contact Copper Beryllium Alloy, Copper Beryllium Alloy
Weight 0.0351kg
Body Copper Beryllium Alloy, Stainless Steel
Coupling Nut Plating Gold Plating (Nickel underplated)
External Remarks Operating specification acc. IEEE Std 287: temperature 13 °C to 33 °C
Connector Gender 1 plug (male)
Connector Gender 2 jack (female)
Insulator PFA / PTFE, Air Dielectric - Bead - PPH
Coupling Nut Bronze
Phase 35.01mm
Highlight2 For Test & Measurement applications
2002/96/EC (WEEE) special marking needed
Class 1184
2000/53/EC (ELV) compliant
Connector Series 2 N-precision
Connector Series 1 SMA-precision
Connector Description Adaptor plug/jack
Gender plug/jack
Highlight1 Precision adaptor
ID 33_SMA-N-50-51/1--_N
Impedance 50
Interface Frequency max. 18GHz
Interface Standards IEC 60169-15_MIL-STD-348A/405_CECC 22110
Junction adaptor
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 70°C
Operating Temperature min. -55°C
Packaging Single
PATTERN CLASSES 33
CONNECTOR SHAPE straight
Type Number 33_SMA-N-50-51/1--_NE
OBJECT_ID 7137774
