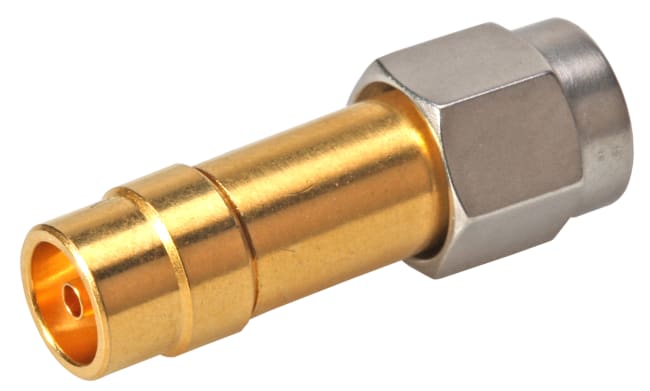

33_SMA-MBX-50-1/11-_NE
Coaxial adapter
SMA - MBX, 50 Ohm, male/female
H+S | |
---|---|
Standard side 2 | HUBER+SUHNER MBX |
Centre contact | Copper Beryllium Alloy / SUCOPRO Plating , Copper Beryllium Alloy / SUCOPRO Plating |
Body | Bronze / SUCOPRO Plating , Bronze / SUCOPRO Plating |
Product code | 33_SMA-MBX-50-1/11-_N |
Insulator | PTFE / LCP , PFA / PTFE |
Details | CAS: 7439-92-1 Lead |
Standard side 1 | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
Interfaces | SMA / MBX |
Outer conductor | Bronze / SUCOPRO Plating , Bronze / SUCOPRO Plating |
Mating cycles | 500 |
Adapter type | between series |
Weight | 0.005181 kg |
Exemptions | 6c |
Directive | RoHS 2011/65/EU and (EU) 2015/863 |
Operation temperature | -55 °C ... 155 °C |
Gender side 1 | plug (male) |
Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
Coupling nut | Stainless steel |
Interface frequency | 6 GHz |
Interface side 2 | MBX |
Interface side 1 | SMA |
Gender side 2 | jack (female) |
Impedance | 50 Ω |
Regulation | REACH 1907/2006 Article 33 SVHC |
