33 PC2.4-N-50-1/199 UE

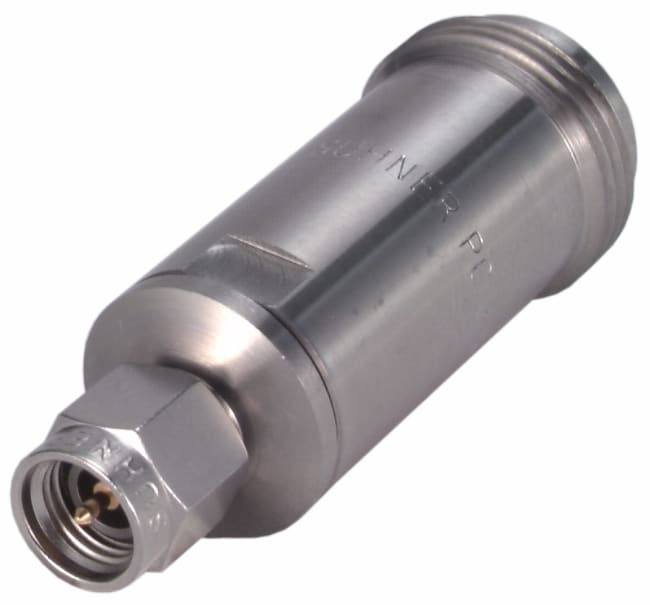

Coaxial adapter
|PC 2.4 - N, 50 Ohm, male/female
| Interface Standards (2) | IEC 60169-16_MIL-STD-348A/402_CECC 22210 |
| Frequency min. Range2 | 10GHz |
| Outer Contact | Stainless Steel, Stainless Steel |
| Centre Contact Plating | Gold Plating (without Nickel underplating), Gold Plating (without Nickel underplating) |
| VSWR Range 2 | 1.08 |
| Phase Tolerance | 0.1mm |
| Return Loss Range2 | 28dB |
| Adaptor Configuration | between series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Weight | 0.0345kg |
| Body | Stainless Steel, Stainless Steel |
| External Remarks | Operating specification acc. IEEE Std 287: temperature 13 °C to 33 °C |
| Connector Gender 1 | plug (male) |
| Connector Gender 2 | jack (female) |
| Insulator | Air Dielectric - Bead - PPH, Air Dielectric - Bead - PPH |
| Coupling Nut | Stainless Steel |
| Phase | 33.67mm |
| Highlight2 | Precision adaptor |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Connector Series 2 | N-precision |
| Connector Series 1 | PC 2.4 |
| Frequency max. Range2 | 18GHz |
| Connector Description | Adaptor plug/jack |
| Frequency max. Range1 | 10GHz |
| Frequency min. Range1 | 0GHz |
| Gender | plug/jack |
| Highlight1 | For Test & Measurement applications |
| ID | 33_PC24-N-50-1/199_U |
| Impedance | 50 |
| Interface Frequency max. | 18GHz |
| Interface Standards | IEC 60169-38 |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 70°C |
| Operating Temperature min. | -55°C |
| Packaging | Single |
| PATTERN CLASSES | 33 |
| Return Loss Range1 | 32dB |
| CONNECTOR SHAPE | straight |
| Type Number | 33_PC24-N-50-1/199_UE |
| VSWR Range 1 | 1.05 |
| OBJECT_ID | 7137969 |
