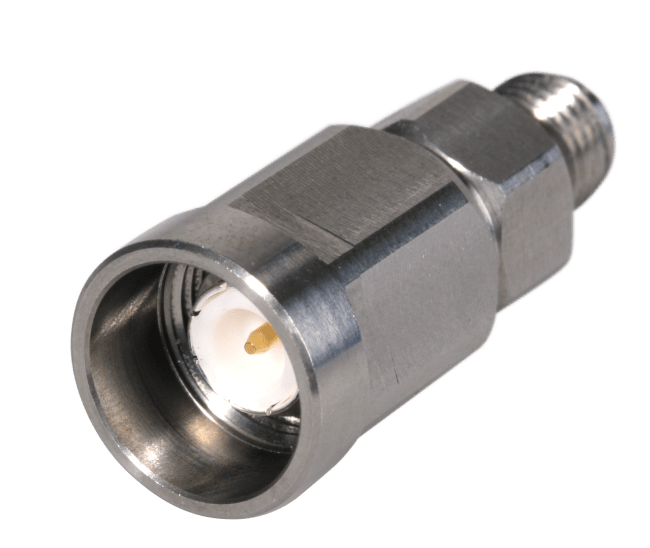

33_NEX10-PC35-50-X1/1-9_NE
Coaxial adapter
|NEX10 - PC 3.5, 50 Ohm, male/female
| Interface Standards (2) | IEC 60169-23 |
| Outer Contact | Stainless Steel, Bronze |
| Centre Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
| Outer Contact Plating | Silver Plating |
| Adaptor Configuration | between series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Product is Lead-Free Soldered | not soldered |
| Body | Stainless Steel, Stainless Steel |
| Connector Gender 1 | plug (male) |
| Connector Gender 2 | jack (female) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Coupling Nut | Stainless Steel |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1184 |
| Connector Series 2 | PC 3.5 |
| Connector Series 1 | NEX10 |
| Connector Description | Adaptor plug/jack |
| Gender | plug/jack |
| Highlight1 | For Test & Measurement applications |
| ID | 33_NEX10-PC35-50-X1/1-9_N |
| Impedance | 50 |
| Interface Frequency max. | 20GHz |
| Interface Standards | Standard |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 100°C |
| Operating Temperature min. | -55°C |
| Packaging | Single |
| PATTERN CLASSES | 33 |
| CONNECTOR SHAPE | straight |
| Type Number | 33_NEX10-PC35-50-X1/1-9_NE |
| OBJECT_ID | 7138038 |
