33_N-716-50-3/133_WE

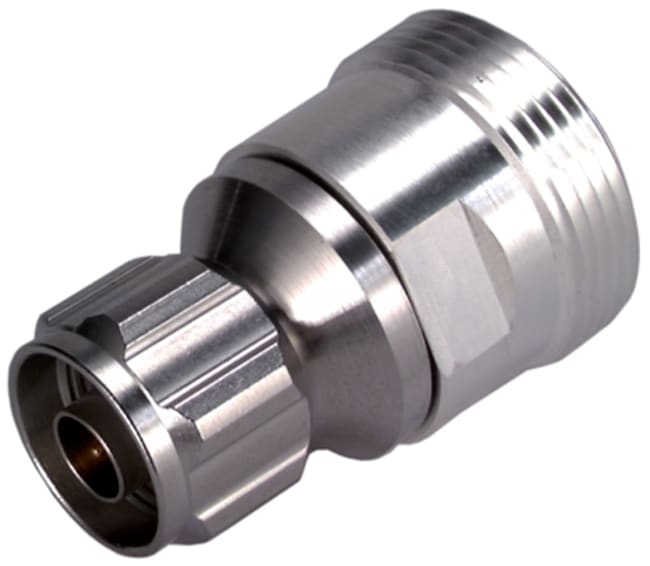

Coaxial adapter
N - 7/16, 50 Ohm, male/female
| H+S | |
|---|---|
| Standard side 2 | IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
| Centre contact | Copper Beryllium Alloy / SUCOPRO Plating , Copper Beryllium Alloy / SUCOPRO Plating |
| Operation temperature | -65 °C ... 165 °C |
| Body | Brass / SUCOPLATE (R) Plating , Brass / SUCOPLATE (R) Plating |
| Gender side 1 | plug (male) |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating , Brass / SUCOPLATE (R) Plating |
| Product code | 33_N-716-50-3/133_W |
| Insulator | PFA / PTFE , PFA / PTFE |
| Interface frequency | 7.5 GHz |
| Interface side 2 | 7/16 |
| Standard side 1 | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Interfaces | N / 7/16 |
| Interface side 1 | N |
| Gender side 2 | jack (female) |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Adapter type | between series |
| Weight | 0.0871 kg |
