33_MMPX-PC1-50-1/111_NE

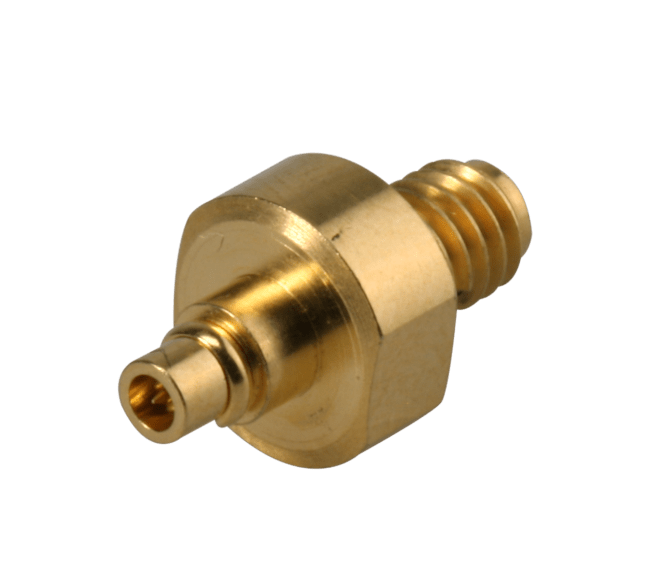

Coaxial adapter
MMPX - PC 1, 50 Ohm, male/female
| H+S | |
|---|---|
| Standard side 2 | IEEE 287:2007 |
| Centre contact | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) , Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
| Body | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) , Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Product code | 33_MMPX-PC1-50-1/111_NE |
| Insulator | PEEK (Polyether-etherketone) , PEEK (Polyether-etherketone) |
| Details | CAS: 7439-92-1 Lead |
| Standard side 1 | HUBER+SUHNER MMPX STD (Patent US 7.294.023) |
| Interfaces | MMPX / PC 1 |
| Outer conductor | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) , Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Adapter type | between series |
| Weight | 0.003 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Operation temperature | 15 °C ... 30 °C |
| Gender side 1 | plug (male) |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Interface frequency | 80 GHz |
| Interface side 2 | PC 1 |
| Interface side 1 | MMPX |
| Gender side 2 | jack (female) |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
