33_MFBX-SMA-50-1/111_NE

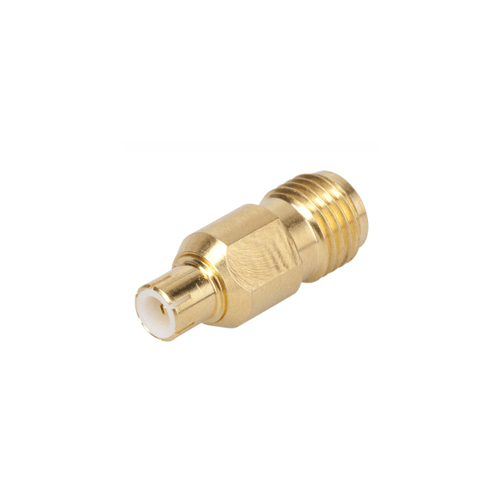

Coaxial adapter
MFBX - SMA, 50 Ohm, male/female
| H+S | |
|---|---|
| Standard side 2 | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Centre contact | Copper Beryllium Alloy / SUCOPRO Plating , Copper Beryllium Alloy / SUCOPRO Plating |
| Operation temperature | -55 °C ... 155 °C |
| Body | Copper Beryllium Alloy / SUCOPRO Plating , Copper Beryllium Alloy / SUCOPRO Plating |
| Gender side 1 | plug (male) |
| Outer conductor | Copper Beryllium Alloy / SUCOPRO Plating , Copper Beryllium Alloy / SUCOPRO Plating |
| Product code | 33_MFBX-SMA-50-1/111_N |
| Insulator | PFA / PTFE , PFA / PTFE |
| Interface frequency | 6 GHz |
| Interface side 2 | SMA |
| Standard side 1 | HUBER+SUHNER MFBX |
| Interfaces | MFBX / SMA |
| Interface side 1 | MFBX |
| Gender side 2 | jack (female) |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Adapter type | between series |
| Weight | 0.0025 kg |
