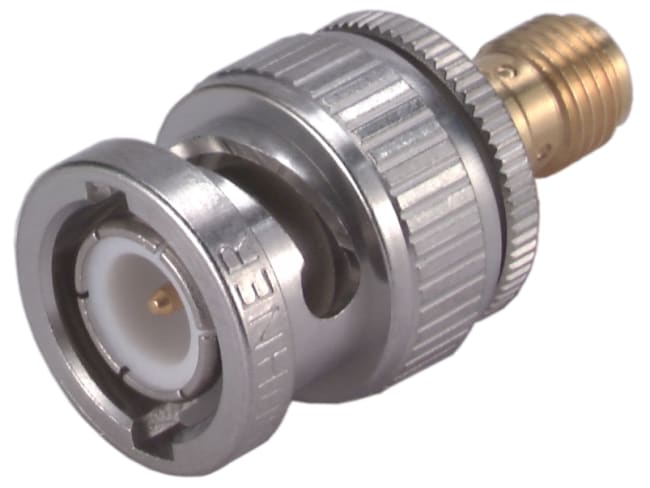

33 BNC-SMA-50-1/1-- UE
| Interface Standards (2) | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Outer Contact | Copper Beryllium Alloy, Brass |
| Centre Contact Plating | Gold Plating (without Nickel underplating), Gold Plating (without Nickel underplating) |
| Outer Contact Plating | SUCOPLATE (R) Plating, Gold Plating (without Nickel underplating) |
| Body Plating | Gold Plating (without Nickel underplating), SUCOPLATE (R) Plating |
| Gasket | VMQ (Silicone rubber) |
| Adaptor Configuration | between series |
| Centre Contact | Copper Beryllium Alloy, Copper Beryllium Alloy |
| Weight | 0.0118kg |
| Body | Brass, Copper Beryllium Alloy |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Connector Gender 1 | plug (male) |
| Connector Gender 2 | jack (female) |
| Insulator | PFA / PTFE, PFA / PTFE |
| Coupling Nut | Brass |
| 2002/96/EC (WEEE) | special marking needed |
| Class | 1184 |
| 2000/53/EC (ELV) | compliant |
| Connector Series 2 | SMA |
| Connector Series 1 | BNC |
| Connector Description | Adaptor plug/jack |
| Gender | plug/jack |
| ID | 33_BNC-SMA-50-1/1--_U |
| Impedance | 50 |
| Interface Frequency max. | 4GHz |
| Interface Standards | IEC 61169-8_MIL-STD-348A/301_CECC 22120 |
| Junction | adaptor |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Packaging | Single |
| PATTERN CLASSES | 33 |
| CONNECTOR SHAPE | straight |
| Type Number | 33_BNC-SMA-50-1/1--_UE |
| OBJECT_ID | 7137850 |
