| Interface Standards (2) |
IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Outer Contact |
Brass, Copper Beryllium Alloy |
| Flange Type |
round flange |
| Centre Contact Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Outer Contact Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Body Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Flange Dimension |
others |
| Adaptor Configuration |
between series |
| Centre Contact |
Copper Beryllium Alloy, Copper Beryllium Alloy |
| Weight |
0.0029 kg |
| Body |
Brass, Brass |
| External Remarks |
Insertion loss: < 0.1 dB up to 4 GHz |
| Connector Gender 1 |
plug (male) |
| Connector Gender 2 |
jack (female) |
| Insulator |
PFA / PTFE, PFA / PTFE |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1184 |
| 2000/53/EC (ELV) |
compliant |
| Connector Series 2 |
SMA |
| Connector Series 1 |
1.0/2.3 C50 |
| Connector Description |

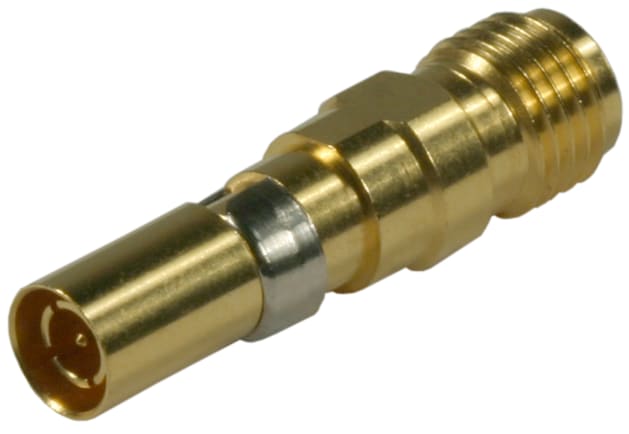

Adaptor plug/jack |
| Frequency max. Range1 |
4 GHz |
| Frequency min. Range1 |
N GHz |
| Gender |
plug/jack |
| ID |
33_1023-SMA-C50-1/111_N |
| Impedance |
50 |
| Interface Frequency max. |
4 GHz |
| Interface Standards |
DIN 41626/2 |
| Junction |
adaptor |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
125 °C |
| Operating Temperature min. |
-55 °C |
| Packaging |
Single |
| PATTERN CLASSES |
33 |
| Return Loss Range1 |
27 dB |
| CONNECTOR SHAPE |
straight |
| Type Number |
33_1023-SMA-C50-1/111_NE |
| VSWR Range 1 |
1.09 |
| OBJECT_ID |
7138002 |
