32_PC1-50-0-1/11-_UE

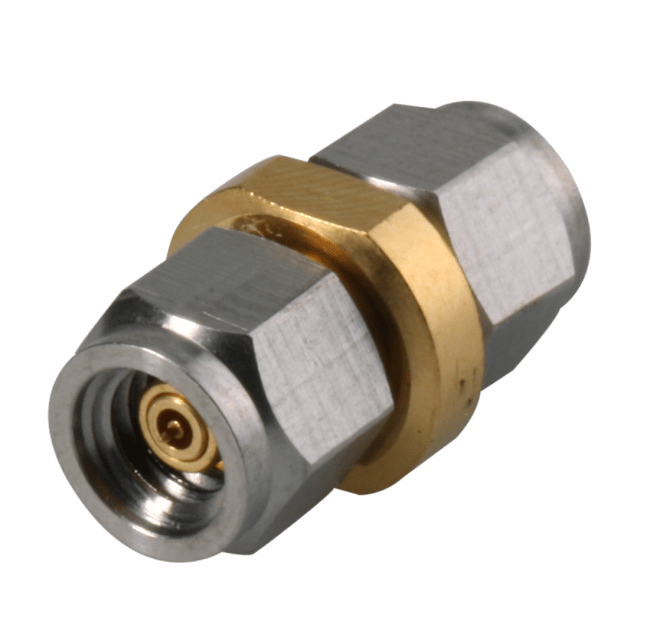

Coaxial adapter
PC 1, 50 Ohm, plug / plug (male / male)
H+S | |
---|---|
Standard side 2 | IEEE 287:2007 |
Centre contact | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) , Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
Body | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) , Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
Product code | 32_PC1-50-0-1/11-_UE |
Insulator | PEEK (Polyether-etherketone) , PEEK (Polyether-etherketone) |
Details | CAS: 7439-92-1 Lead |
Standard side 1 | IEEE 287:2007 |
Coupling nut | Stainless Steel / Passivated (Plating) , Stainless Steel / Passivated (Plating) |
Interfaces | PC 1 / PC 1 |
Outer conductor | Copper Beryllium Alloy / Gold Plating (without Nickel underplating) , Copper Beryllium Alloy / Gold Plating (without Nickel underplating) |
Mating cycles | 100 |
Adapter type | within series |
Weight | 0.004 kg |
Exemptions | 6c |
Directive | RoHS 2011/65/EU and (EU) 2015/863 |
Operation temperature | 15 °C ... 30 °C |
Gender side 1 | plug (male) |
Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
Interface frequency | 110 GHz |
Interface side 2 | PC 1 |
Interface side 1 | PC 1 |
Gender side 2 | plug (male) |
Impedance | 50 Ω |
Regulation | REACH 1907/2006 Article 33 SVHC |
