| Interface Standards (2) |
Not compatible to N 50 Ohms |
| Outer Contact |
Brass, Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| Outer Contact Plating |
SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Body Plating |
SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Gasket |
VMQ (Silicone rubber), VMQ (Silicone rubber) |
| Adaptor Configuration |
within series |
| Centre Contact |
Brass, Brass |
| Weight |
0.0533 kg |
| Body |
Brass, Brass |
| Coupling Nut Plating |
SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Connector Gender 1 |
plug (male) |
| Connector Gender 2 |
plug (male) |
| Coupling Nut |
Brass, Brass |
| Insulator |
PFA / PTFE, PFA / PTFE |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1184 |
| 2000/53/EC (ELV) |
compliant |
| Connector Series 2 |
N |
| Connector Series 1 |
N |
| Connector Description |
Adaptor plug/plug |
| Gender |
plug/plug |
| ID |
32_N-75-0-1/133_N |
| Impedance |
75 |
| Interface Frequency max. |
1.5 GHz |
| Interface Standards |
Not compatible to N 50 Ohms |
| Junction |
adaptor |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Packaging |
Single |
| PATTERN CLASSES |
32 |
| CONNECTOR SHAPE |
straight |
| Type Number |

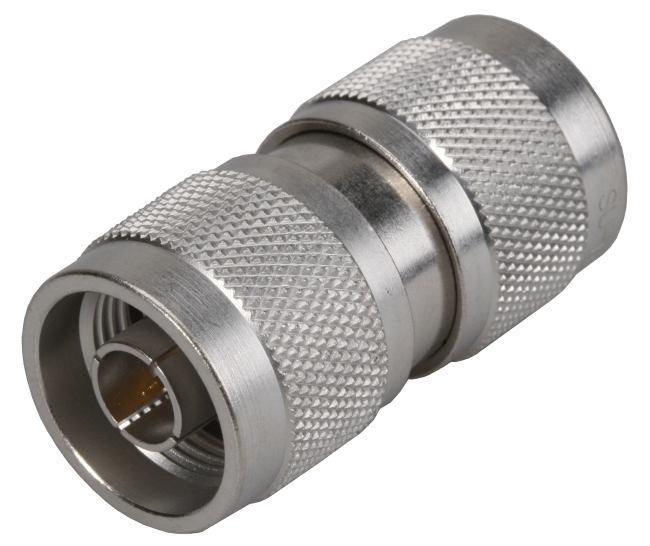

32_N-75-0-1/133_NE |
| OBJECT_ID |
7138073 |
