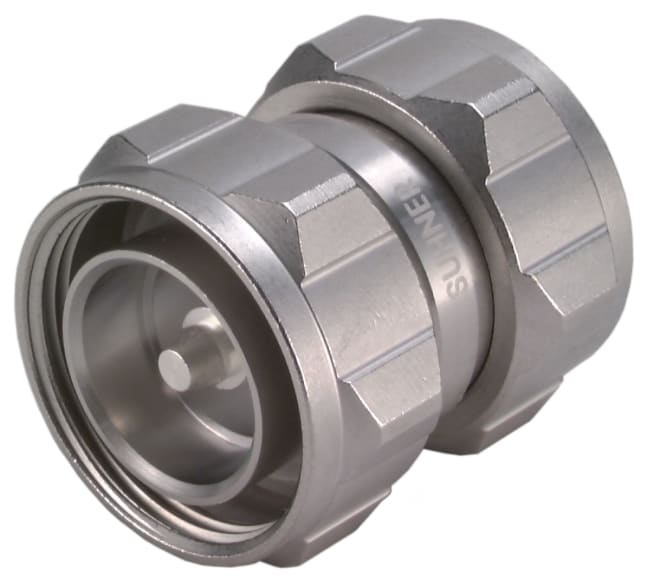

32 716-50-0-2/033 WE
Interface Standards (2) | IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
Outer Contact | Brass, Brass |
Centre Contact Plating | SUCOPRO Plating, SUCOPRO Plating |
Outer Contact Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
Intermod. Static 2x20W | -165 dBc |
Body Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
Adaptor Configuration | within series |
Centre Contact | Brass, Brass |
Weight | 0.128 kg |
Body | Brass, Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
Connector Gender 1 | plug (male) |
Connector Gender 2 | plug (male) |
Coupling Nut | Brass, Brass |
Insulator | PFA / PTFE, PFA / PTFE |
Highlight2 | For Test & Measurement applications |
2002/96/EC (WEEE) | special marking needed |
Class | 1184 |
2000/53/EC (ELV) | compliant |
Connector Series 2 | 7/16 |
Connector Series 1 | 7/16 |
Connector Description | PIM Adaptor plug/plug |
Gender | plug/plug |
Highlight1 | Low passive intermodulation (PIM) adaptor |
ID | 32_716-50-0-2/133_W |
Impedance | 50 |
Interface Frequency max. | 7.5 GHz |
Interface Standards | IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
Junction | adaptor |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165 °C |
Operating Temperature min. | -65 °C |
Packaging | Single |
PATTERN CLASSES | 32 |
CONNECTOR SHAPE | straight |
Type Number | 32_716-50-0-2/133_WE |
OBJECT_ID | 7137072 |
