| Frequency min. Range3 |
6 GHz |
| Frequency min. Range2 |
2 GHz |
| Outer Contact |
Brass, Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated), Gold Plating (Nickel underplated) |
| VSWR Range 3 |
1.5 |
| VSWR Range 2 |
1.3 |
| Outer Contact Plating |
SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Body Plating |
SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Return Loss Range2 |
17 dB |
| Return Loss Range3 |
13 dB |
| Adaptor Configuration |
between series |
| Centre Contact |
Bronze, Bronze |
| Weight |
0.0339 kg |
| Body |
Brass, Brass |
| Connector Gender 1 |
jack (female) |
| Connector Gender 2 |
jack (female) |
| Insulator |
PFA / PTFE |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1184 |
| 2000/53/EC (ELV) |
compliant |
| Connector Series 2 |
QN |
| Connector Series 1 |
N |
| Frequency max. Range2 |
6 GHz |
| Frequency max. Range3 |
11 GHz |

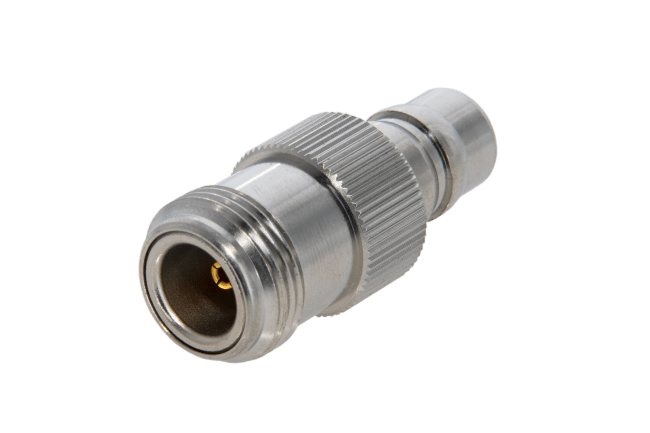

| Connector Description |
Adaptor jack/jack |
| Frequency max. Range1 |
2 GHz |
| Frequency min. Range1 |
N GHz |
| Gender |
jack/jack |
| Highlight1 |
QuickLock Interface |
| ID |
31_N-QN-50-1/133_N |
| Impedance |
50 |
| Interface Frequency max. |
11 GHz |
| Interface Standards |
IEC 60169-16_MIL-STD-348A/304_CECC 22210 / QN QLF compliant |
| Junction |
adaptor |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
100 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Packaging |
Single |
| PATTERN CLASSES |
31 |
| Return Loss Range1 |
32 dB |
| CONNECTOR SHAPE |
straight |
| Type Number |
31_N-QN-50-1/133_NE |
| VSWR Range 1 |
1.05 |
| OBJECT_ID |
8219445 |
