| Interface Standards (2) |
IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Outer Contact |
Brass, Bronze |
| Centre Contact Plating |
SUCOPRO Plating, SUCOPRO Plating |
| Outer Contact Plating |
SUCOPRO Plating, SUCOPLATE (R) Plating |
| Body Plating |
SUCOPLATE (R) Plating, SUCOPLATE (R) Plating |
| Adaptor Configuration |
between series |
| Centre Contact |
Copper Beryllium Alloy, Copper Beryllium Alloy |
| Product is Lead-Free Soldered |
not soldered |
| Weight |
0.0642 kg |
| Body |
Brass, Brass |
| External Remarks |
Durability of QUICK MATE interface: 1000 matings |
| Connector Gender 1 |
jack (female) |
| Connector Gender 2 |
jack (female) |
| Insulator |
PFA / PTFE, PFA / PTFE |
| Highlight2 |
For Test & Measurement applications |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1184 |
| 2000/53/EC (ELV) |
compliant |
| Connector Series 2 |
N |
| Connector Series 1 |
7/16 Quick-mate |

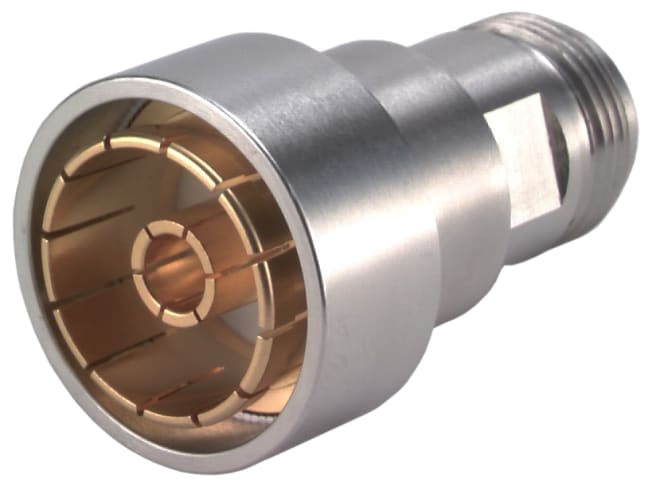

| Connector Description |
Adaptor jack/jack |
| Gender |
jack/jack |
| Highlight1 |
Quick-mate coupling mechanism, pluggable without tightening |
| ID |
31_716-N-Q50-1/1-3_N |
| Impedance |
50 |
| Interface Frequency max. |
7.5 GHz |
| Interface Standards |
HUBER+SUHNER Quick-mate |
| Junction |
adaptor |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Packaging |
Single |
| PATTERN CLASSES |
31 |
| CONNECTOR SHAPE |
straight |
| Type Number |
31_716-N-Q50-1/1-3_NE |
| OBJECT_ID |
7137696 |
