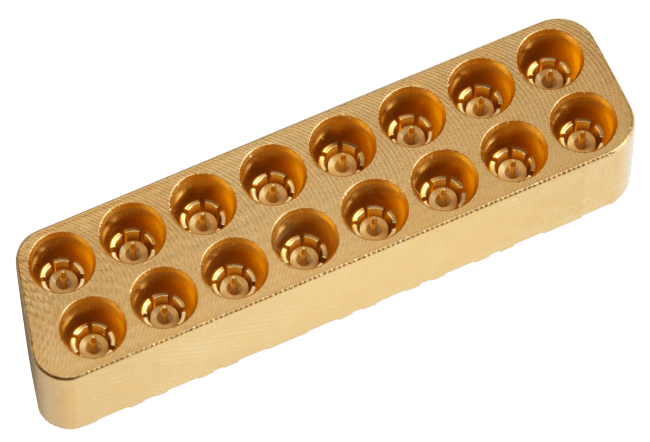

2x8A_81_MXP-S50-0-1/111_NE

Produktnummer: 84072058
Huber Suhner
Lagerbeholdning:

Coaxial connector
MXP, 50 Ohm, Straight PCB female

H+S
Insulator PEEK (Polyether-etherketone)
Interface frequency 40 GHz
Centre contact Copper Beryllium Alloy / SUCOPRO Plating
Engagement force max 54 N
Board mounting type pin-in-hole / SMT
Interface type MXP
Number of printlegs 2
Disengagement force (to) 54 N
Operation temperature -55 °C ... 85 °C
Body Brass / SUCOPRO Plating
Standard HUBER+SUHNER MXP STD (Patented US 8,360,807)
Impedance 50 Ω
Mating cycles 500
Outer conductor Bronze / SUCOPRO Plating
Product code 2x8A_81_MXP-S50-0-1/111N
Height above PCB HA 6.8 mm
Weight 0.0116 kg
Gender plug
