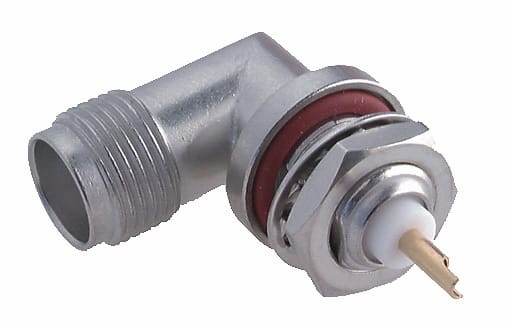

27 TNC-50-0-1/133NE
| Flange Type | round flange |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut | Brass |
| Terminal Dimension D1 | 2.1 mm |
| Panel Thickness | 4 mm |
| Terminal Dimension L2 | 10.3 mm |
| Terminal Dimension L1 | 17 mm |
| Tab Style | solder end |
| Washer | Bronze |
| Flange Dimension | others |
| Washer Plating | SUCOPLATE (R) Plating |
| Weight | 0.0166 kg |
| 2002/96/EC (WEEE) | no special marking needed |
| Class | 1182 |
| 2006/1907/EC (REACH) | compliant |
| Body | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Centre Contact | Copper Beryllium / Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Right angle bulkhead receptacle jack |
| CONNECTOR SERIES | TNC |
| Gasket | VMQ (Silicone rubber) |
| Gender | jack |
| Highlight1 | Front mount chassis connector |
| ID | 27_TNC-50-0-1/133_N |
| Impedance | 50 |
| Insulator | PFA / PTFE |
| Interface Frequency max. | 11 GHz |
| Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Junction | receptacle |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 27 |
| CONNECTOR SHAPE | right-angle |
| Type Number | 27_TNC-50-0-1/133_NE |
| OBJECT_ID | 3069195 |
