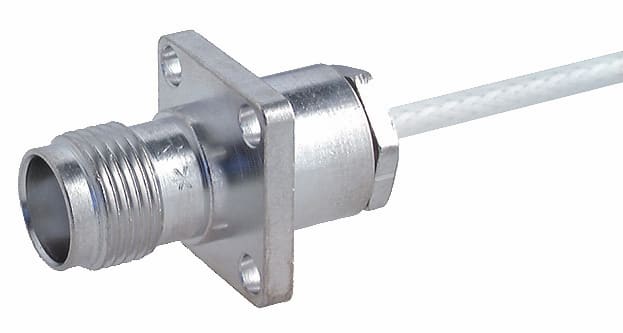

25 TNC-50-3-9/133NE

Produktnummer: 22643707
Huber Suhner
Lagerbeholdning:

Cable Group4 X25
Cable Group3 U11
Flange Type square flange
Flange Dimension 17.5 X 17.5
Cable Entry Centre Contact soldered
Cable Entry Outer Contact clamped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group U7
Cable Group2 U9
Cable Retention Force 125 N
Cable1 RG_58_C/U
Cable2 RG_223_/U
Cable3 ENVIROFLEX_142
Cable5 RG_400_/U
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight panel cable jack, flange mount
CONNECTOR SERIES TNC
Dielectric Size 3 mm
Gasket Material VMQ (Silicone rubber)
Gender jack
ID 25_TNC-50-3-9/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11 GHz
Interface Standards IEC 60169-17_MIL-STD-348A/313_CECC 22200
Junction cable
2011/65/EC (RoHS) compliant
Mounting panel
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 25
Weight 0.0181 kg
CONNECTOR SHAPE straight
Type Number 25_TNC-50-3-9/133_NE
OBJECT_ID 4519817
