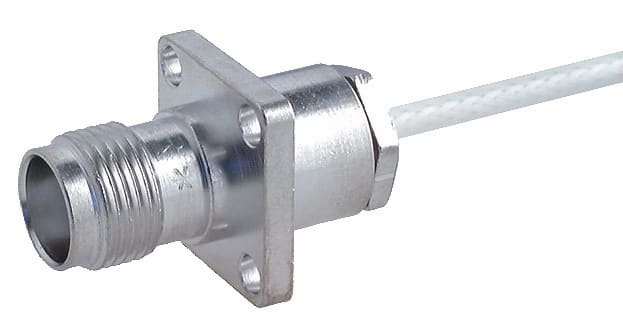

25 TNC-50-2-21/133NE
Coaxial connector
TNC, 50 Ohm, Straight panel cable female, flange mount
| H+S | |
|---|---|
| Interface type | TNC-reverse |
| Operation temperature | -65 °C ... 165 °C |
| Suitable cables | SR_86_TP_M17 |
| Outer conductor | Brass / Silver / SUCOPLATE (R) Plating |
| Product code | 25_TNC-50-2-21/133_N |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Interface frequency | 11 GHz |
| Available as assembly only | No |
| Cable group | Y3Y16Y11 , Y3 - 2 mm / 50 OhmY16 - 2 mm / 50 OhmY11 - 2 mm / 50 Ohm |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | soldered |
| Standard | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Weight | 0.0157 kg |
| Cable entry outer contact | soldered |
| Gender | jack |
