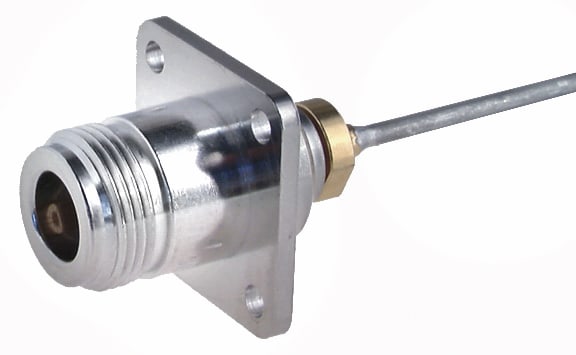

25 N-50-2-14/133NE

Produktnummer: 22641303
Huber Suhner
Lagerbeholdning:

Flange Type square flange
Flange Dimension 25.4 X 25.4
Cable Entry Centre Contact soldered
Cable Entry Outer Contact soldered
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors Y3
Cable Group2 Y16
Cable Retention Force 158 N
Cable1 EZ_86_TP_M17
Cable2 SUCOFORM_86
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight panel cable jack, flange mount
CONNECTOR SERIES N
Dielectric Size 2 mm
Gender jack
ID 25_N-50-2-14/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 18 GHz
Interface Standards IEC 61169-16_MIL-STD-348A/304_CECC 22210
Junction cable
2011/65/EC (RoHS) compliant
Mounting panel
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 25
Weight 0.0427 kg
CONNECTOR SHAPE straight
Type Number 25_N-50-2-14/133_NE
OBJECT_ID 4290735
