24_TNC-50-3-54/133_NE
Frequency min. Range3 | 4GHz |
Frequency min. Range2 | 2GHz |
Flange Type | hexagonal flange |
VSWR Range 3 | 1.079 |
VSWR Range 2 | 1.043 |
Fastening Nut Plating | SUCOPLATE (R) Plating |
Fastening Nut Material | Brass |
Other Body Part Plating | SUCOPLATE (R) Plating |
Panel Thickness | 3.5mm |
Washer Material | Bronze |
Flange Dimension | hex 17 |
Return Loss Range2 | 33.5dB |
Return Loss Range3 | 28.4dB |
Washer Plating | SUCOPLATE (R) Plating |
Other Body Part Material | Brass |
Cable Entry Centre Contact | plugged |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Frequency max. Range2 | 4GHz |
Frequency max. Range3 | 6GHz |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | X27 |
Cable1 | SPUMA_195 |
Centre Contact Material | Bronze |
Centre Contact Plating | Gold Plating (Nickel underplated) |

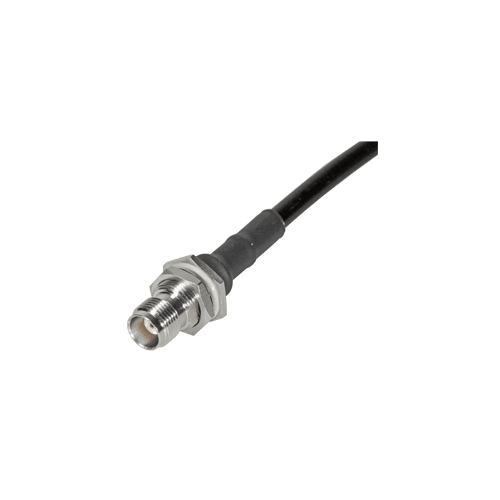

Connector Description | Straight bulkhead cable jack |
CONNECTOR SERIES | TNC |
Crimp Ferrule Material | Copper |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 3mm |
Frequency max. Range1 | 2GHz |
Frequency min. Range1 | 0.1GHz |
Gasket Material | VMQ (Silicone rubber) |
Gender | jack |
ID | 24_TNC-50-3-54/133_N |
Impedance | 50 |
Insulator Material | PTFE (Polytetrafluoroethylene) |
Interface Frequency max. | 11GHz |
Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | bulkhead |
Number of Matings | 500 |
Operating Temperature max. | 165°C |
Operating Temperature min. | -65°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 24 |
Return Loss Range1 | 36.6dB |
CONNECTOR SHAPE | straight |
Type Number | 24_TNC-50-3-54/133_NE |
VSWR Range 1 | 1.03 |
OBJECT_ID | 7701474 |
