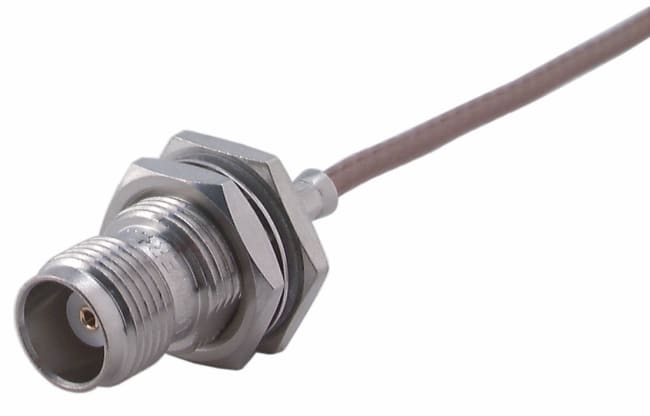

24 TNC-50-3-21/133NE

Produktnummer: 23001722
Huber Suhner
Lagerbeholdning:

Flange Type hexagonal flange
Fastening Nut Plating SUCOPLATE (R) Plating
Fastening Nut Material Brass
Panel Thickness 3.5 mm
Washer Material Bronze
Flange Dimension hex 17
Washer Plating SUCOPLATE (R) Plating
External Remarks El. Optimized for cable RG_223_/U
Highlight2 Excellent return loss performance
Cable Entry Centre Contact crimped
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group U9
Cable Retention Force 260 N
Cable1 RG_223_/U
Cable2 ENVIROFLEX_142
Cable3 G_03232_D-01
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight bulkhead cable feed through
CONNECTOR SERIES TNC
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 3 mm
Frequency max. Range1 2.5 GHz
Frequency min. Range1 N GHz
Gasket Material VMQ (Silicone rubber)
Gender jack
Highlight1 El. Optimized for cable RG 223/U
ID 24_TNC-50-3-21/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11 GHz
Interface Standards IEC 60169-17_MIL-STD-348A/313_CECC 22200
Junction cable
2011/65/EC (RoHS) compliant
Mounting bulkhead
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 24
Return Loss Range1 32 dB
Weight 0.0169 kg
CONNECTOR SHAPE straight
Type Number 24_TNC-50-3-21/133_NE
VSWR Range 1 1.052
OBJECT_ID 3019022
