| Flange Type |
hexagonal flange |
| Fastening Nut Plating |
SUCOPLATE (R) Plating |
| Fastening Nut Material |
Brass |
| Panel Thickness |
3.5 mm |
| Washer Material |
Bronze |
| Flange Dimension |
hex 17 |
| Washer Plating |
SUCOPLATE (R) Plating |
| External Remarks |
El. optimized for cable K_02252_D |
| Highlight2 |
Excellent return loss performance |
| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U4 |
| Cable Retention Force |
110 N |
| Cable1 |
K_02252_D |
| Cable2 |
ENVIROFLEX_316_D |
| Cable3 |
G_02232_D |
| Centre Contact Material |
Copper Beryllium / Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |
Straight bulkhead cable feed through |
| CONNECTOR SERIES |
TNC |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
2 mm |
| Frequency max. Range1 |
2.5 GHz |
| Frequency min. Range1 |
N GHz |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
jack |
| Highlight1 |
El. Optimized for cable K 02252 D |
| ID |
24_TNC-50-2-29/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
11 GHz |
| Interface Standards |
IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Bulk 100 pcs |
| PATTERN CLASSES |
24 |
| Return Loss Range1 |
32 dB |
| Weight |
0.0172 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |

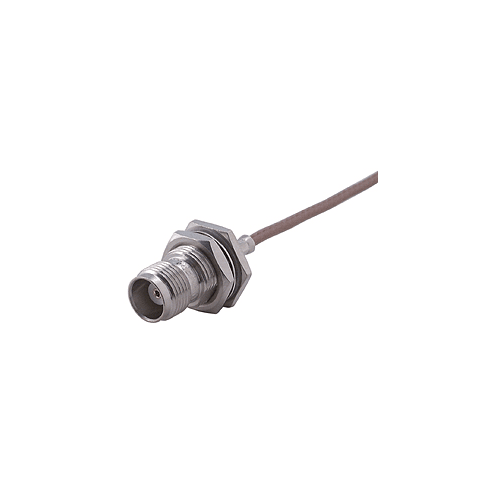

24_TNC-50-2-29/133_NH |
| VSWR Range 1 |
1.052 |
| OBJECT_ID |
2507063 |
