24 SMA-50-3-17/111_NH
Cable Group3 | Y17 |
Flange Type | hexagonal flange |
Fastening Nut Plating | SUCOPRO Plating |
Fastening Nut Material | Brass |
Panel Thickness | 2 mm |
Washer Material | Bronze |
Flange Dimension | hex 11 |
Washer Plating | SUCOPRO Plating |
Highlight2 | Rear mount chassis connector |
Cable Entry Centre Contact | soldered |
Cable Entry Outer Contact | soldered |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPRO Plating |
Cable Group Connectors | Y5 |
Cable Group2 | Y12 |
Cable Retention Force | 69 N |
Cable1 | SUCOFORM_141 |
Cable2 | EZ_141_M17 |
Cable3 | MULTIFLEX_141 |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | SUCOPRO Plating |

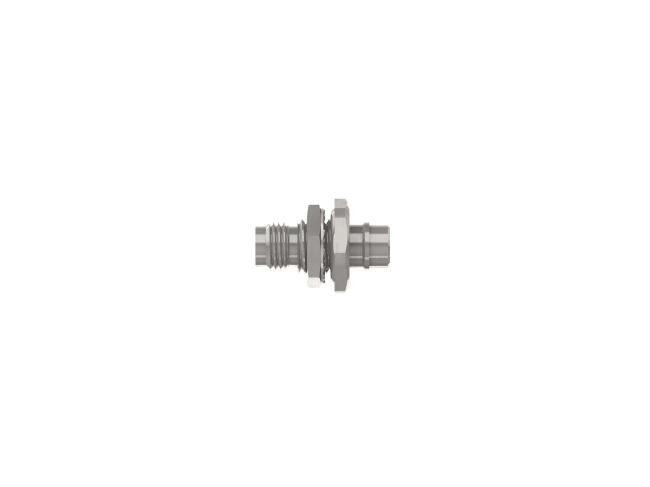

Connector Description | Straight bulkhead cable feed through |
CONNECTOR SERIES | SMA |
Dielectric Size | 3 mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | jack |
Highlight1 | HUBER+SUHNER ECO |
ID | 24_SMA-50-3-17/111_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 18 GHz |
Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | bulkhead |
Number of Matings | 500 |
Operating Temperature max. | 165 °C |
Operating Temperature min. | -65 °C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPRO Plating |
Packaging | Bulk 100 pcs |
PATTERN CLASSES | 24 |
Weight | 0.0033 kg |
CONNECTOR SHAPE | straight |
Type Number | 24_SMA-50-3-17/111_NH |
OBJECT_ID | 3019088 |
