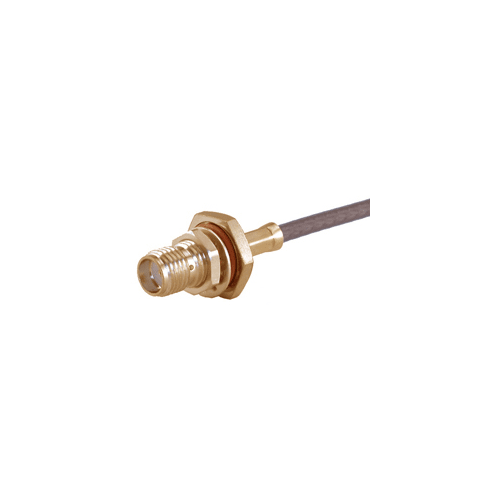

24 SMA-50-2-14/111NE
| Flange Type | hexagonal flange |
| Fastening Nut Plating | Gold Plating (Nickel underplated) |
| Fastening Nut Material | Brass |
| Panel Thickness | 2.5 mm |
| Washer Material | Bronze |
| Flange Dimension | hex. 11.1 |
| Washer Plating | Gold Plating (Nickel underplated) |
| Highlight2 | With panel seal |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | Gold Plating (Nickel underplated) |
| Cable Group Connectors | U2 |
| Cable Retention Force | 125 N |
| Cable1 | RG_316_/U |
| Cable2 | ENVIROFLEX_316 |
| Cable3 | RG_188_A/U |
| Cable5 | RG_174_/U |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead cable feed through |
| CONNECTOR SERIES | SMA |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | Gold Plating (without Nickel underplating) |
| Dielectric Size | 2 mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | jack |
| Highlight1 | Rear mount chassis connector |
| ID | 24_SMA-50-2-14/111_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18 GHz |
| Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | Gold Plating (Nickel underplated) |
| Packaging | Single |
| PATTERN CLASSES | 24 |
| Weight | 0.0045 kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_SMA-50-2-14/111_NE |
| OBJECT_ID | 4649158 |
