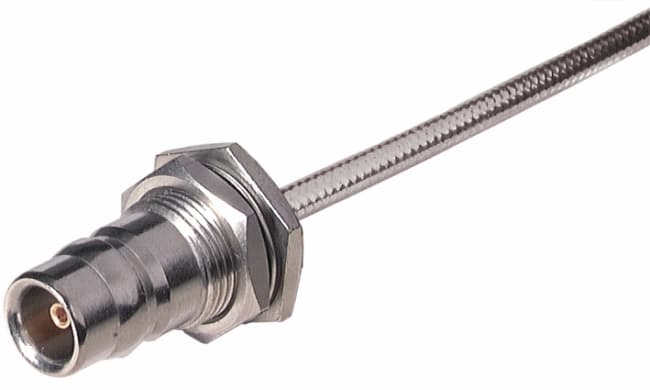

24_QN-50-3-3/13-_NE
Coaxial connector
|QN, 50 Ohm, Straight bulkhead cable female
| Cable Group3 | Y17 |
| Frequency min. Range3 | 3GHz |
| Frequency min. Range2 | 2GHz |
| Flange Type | hexagonal flange |
| VSWR Range 3 | 1.12 |
| VSWR Range 2 | 1.035 |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut Material | Brass |
| Panel Thickness | 3.5mm |
| Washer Material | Bronze |
| Flange Dimension | hex 17 |
| Return Loss Range2 | 35dB |
| Return Loss Range3 | 25dB |
| Washer Plating | SUCOPLATE (R) Plating |
| Highlight2 | Rear mount chassis connector |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 3GHz |
| Frequency max. Range3 | 6GHz |
| Body Plating | SUCOPLATE (R) / SUCOPRO Plating |
| Cable Group Connectors | Y5 |
| Cable Group2 | Y12 |
| Cable Retention Force | 100N |
| Cable1 | SUCOFORM_141 |
| Cable2 | EZ_141_AL_TP_M17 |
| Cable3 | MULTIFLEX_141 |
| Centre Contact Material | Bronze |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight bulkhead cable feed through |
| CONNECTOR SERIES | QN |
| Dielectric Size | 3mm |
| Frequency max. Range1 | 2GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | jack |
| Highlight1 | QuickLock Interface |
| ID | 24_QN-50-3-3/13-_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11GHz |
| Interface Standards | QN QLF compliant |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 100 |
| Operating Temperature max. | 125°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 24 |
| Return Loss Range1 | 40dB |
| Weight | 0.0188kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_QN-50-3-3/13-_NE |
| VSWR Range 1 | 1.02 |
| OBJECT_ID | 2465847 |
