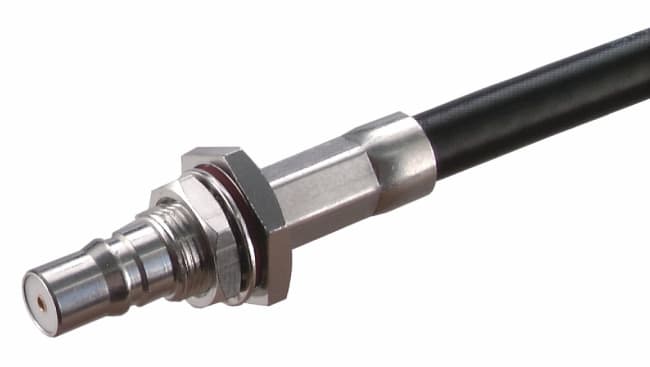

24_QMA-50-3-1/133_NH
Coaxial connector
|QMA, 50 Ohm, Straight bulkhead cable female
| Cable Group3 | U41 |
| Frequency min. Range3 | 4GHz |
| Frequency min. Range2 | 2.5GHz |
| Flange Type | hexagonal flange |
| VSWR Range 3 | 1.119 |
| VSWR Range 2 | 1.083 |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut Material | Brass |
| Panel Thickness | 2.5mm |
| Washer Material | Bronze |
| Flange Dimension | dia. 11 |
| Return Loss Range2 | 28dB |
| Return Loss Range3 | 25dB |
| Washer Plating | SUCOPLATE (R) Plating |
| Cable4 | ENVIROFLEX_400 |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 4GHz |
| Frequency max. Range3 | 5GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U9 |
| Cable Group2 | U11 |
| Cable1 | RG_400_/U |
| Cable2 | ENVIROFLEX_142 |
| Cable3 | RG_223_/U |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight bulkhead cable feed through |
| CONNECTOR SERIES | QMA |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3mm |
| Frequency max. Range1 | 2.5GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | jack |
| Highlight1 | QuickLock Interface |
| ID | 24_QMA-50-3-1/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | QMA QLF compliant |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 100 |
| Operating Temperature max. | 85°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 24 |
| Return Loss Range1 | 30dB |
| Weight | 0.0053kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_QMA-50-3-1/133_NH |
| VSWR Range 1 | 1.065 |
| OBJECT_ID | 5961859 |
