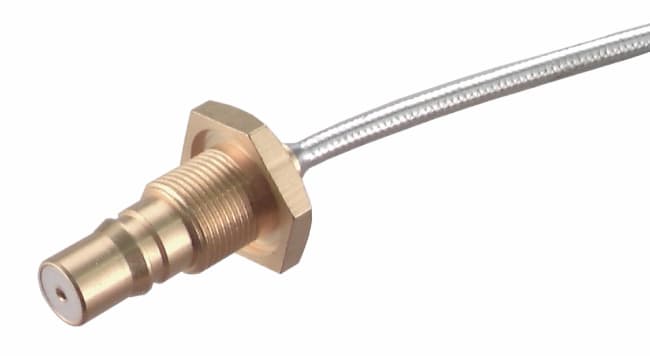

24_QMA-50-2-1/111_NH
Coaxial connector
|QMA, 50 Ohm, Straight bulkhead cable female
Cable Group3 | Y16 |
Flange Type | hexagonal flange |
Fastening Nut Plating | SUCOPRO Plating |
Fastening Nut Material | Brass |
Panel Thickness | 2.5mm |
Washer Material | Bronze |
Flange Dimension | dia. 11 |
Washer Plating | SUCOPRO Plating |
Cable Entry Centre Contact | plugged |
Cable Entry Outer Contact | soldered |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPRO Plating |
Cable Group Connectors | Y3 |
Cable Group2 | Y11 |
Cable1 | SUCOFORM_86 |
Cable2 | EZ_86_TP_M17 |
Cable3 | MULTIFLEX_86 |
Centre Contact Material | Copper Beryllium Alloy |
Centre Contact Plating | SUCOPRO Plating |
Connector Description | Straight bulkhead cable feed through |
CONNECTOR SERIES | QMA |
Dielectric Size | 2mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | jack |
Highlight1 | QuickLock Interface |
ID | 24_QMA-50-2-1/111_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 18GHz |
Interface Standards | QMA QLF compliant |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | bulkhead |
Number of Matings | 100 |
Operating Temperature max. | 85°C |
Operating Temperature min. | -40°C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPRO Plating |
Packaging | Bulk 100 pcs |
PATTERN CLASSES | 24 |
Weight | 0.0041kg |
CONNECTOR SHAPE | straight |
Type Number | 24_QMA-50-2-1/111_NH |
OBJECT_ID | 8105837 |
