| Flange Type |
round flange |
| Fastening Nut Plating |
SUCOPLATE (R) Plating |
| Fastening Nut Material |
Brass |
| Panel Thickness |
7 mm |
| Washer Material |
Bronze |
| Flange Dimension |
dia. 22 |
| Washer Plating |
SUCOPLATE (R) Plating |
| Highlight2 |
SUHNER full crimp cable attachement |
| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U32 |
| Cable Group2 |
U43 |
| Cable Retention Force |
477 N |
| Cable1 |
RG_214_/U |
| Cable2 |
GX_07272_D |
| Cable3 |
GX_07272_D-04 |
| Cable5 |
RADOX_RF_214 |
| Centre Contact Material |
Copper Beryllium Alloy |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |
Straight bulkhead cable feed through |
| CONNECTOR SERIES |
N |
| Crimp Ferrule Material |
Brass |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
7 mm |
| Gender |
jack |
| Highlight1 |
Rear mount chassis connector |
| ID |
24_N-50-7-15/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
11 GHz |
| Interface Standards |
IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
24 |
| Weight |
0.0389 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |

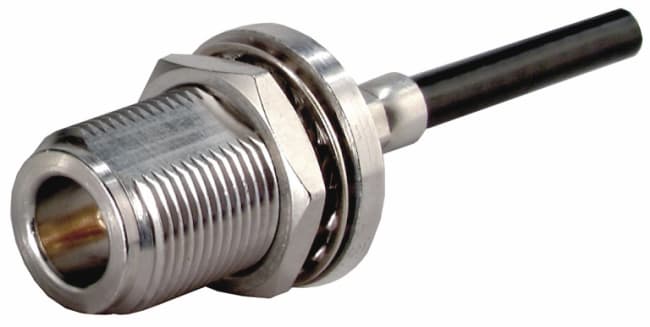

24_N-50-7-15/133_NE |
| OBJECT_ID |
5243447 |
