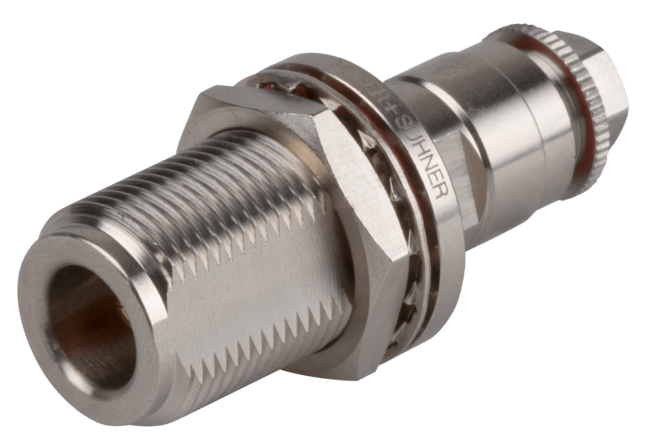

24_N-50-4-13/12-_NE
Coaxial connector
|N, 50 Ohm, Straight bulkhead cable female
| Frequency min. Range2 | 6GHz |
| Flange Type | round flange |
| VSWR Range 2 | 1.17 |
| Fastening Nut Plating | Nickel Plating |
| Fastening Nut Material | Brass |
| Washer Material | Bronze |
| Flange Dimension | dia. 21 |
| Return Loss Range2 | 22dB |
| Washer Plating | Nickel Plating |
| Other Body Part Material | Stainless Steel |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 18GHz |
| Body Plating | Nickel Plating |
| Cable Group Connectors | U94 |
| Cable1 | EACON_4C |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight panel cable jack, flange mount |
| CONNECTOR SERIES | false |
| Dielectric Size | 4mm |
| Frequency max. Range1 | 6GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | jack |
| ID | 24_N-50-4-13/12-_N |
| Impedance | 50 |
| Insulator Material | PTFE (Polytetrafluoroethylene) |
| Interface Frequency max. | 18GHz |
| Interface Standards | IEC 61169-16_MIL-STD-348A/304 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -60°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | Nickel Plating |
| Packaging | Single |
| PATTERN CLASSES | 24 |
| Return Loss Range1 | 25dB |
| Weight | 0.0506kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_N-50-4-13/12-_NE |
| VSWR Range 1 | 1.12 |
| OBJECT_ID | 5088332 |
