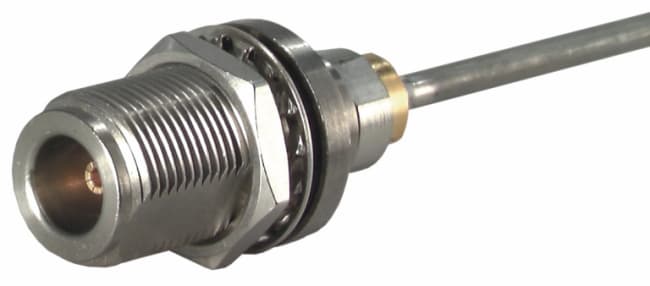

| Cable Group3 |
Y12 |
| Flange Type |
round flange |
| Fastening Nut Plating |
SUCOPLATE (R) Plating |
| Fastening Nut Material |
Brass |
| Panel Thickness |
7.5 mm |
| Washer Material |
Brass |
| Flange Dimension |
dia. 21 |
| Washer Plating |
SUCOPLATE (R) Plating |
| Highlight2 |
Precision connector |
| Cable Entry Centre Contact |
plugged |
| Cable Entry Outer Contact |
soldered |
| Class |
1037 |
| Body Material |
Stainless Steel / Brass |
| Cable Group |
Y5 |
| Cable Group2 |
Y17 |
| Cable Retention Force |
309 N |
| Cable1 |
EZ_141_TP_M17 |
| Cable2 |
MULTIFLEX_141 |
| Cable3 |
SUCOFORM_141_CU |
| Centre Contact Material |
Copper Beryllium Alloy |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |
Straight bulkhead cable feed through |
| CONNECTOR SERIES |
N |
| Dielectric Size |
3 mm |
| Frequency max. Range1 |
12 GHz |
| Frequency min. Range1 |
N GHz |
| Gasket Material |
NR (Natural Rubber) |
| Gender |
jack |
| Highlight1 |
Rear mount chassis connector |
| ID |
24_N-50-3-51/19-_N |
| Impedance |
50 |
| Insulator Material |
Air Dielectric - Bead - PPH |
| Interface Frequency max. |
18 GHz |
| Interface Standards |
IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
70 °C |
| Operating Temperature min. |
-55 °C |
| Outer Contact Material |
Stainless Steel |
| Packaging |
Single |
| PATTERN CLASSES |
24 |
| Return Loss Range1 |
30 dB |
| Weight |
0.0484 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
24_N-50-3-51/19-_NE |
| VSWR Range 1 |
1.07 |
| OBJECT_ID |
5368095 |
