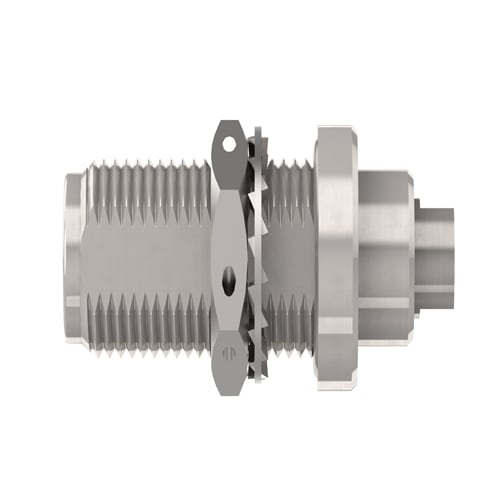

24_N-50-3-45/133_NH
Coaxial connector
|N, 50 Ohm, Straight bulkhead cable female
| Frequency min. Range3 | 4GHz |
| Frequency min. Range2 | 2GHz |
| Flange Type | round flange |
| VSWR Range 3 | 1.135 |
| VSWR Range 2 | 1.064 |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut Material | Brass |
| Washer Material | Bronze |
| Flange Dimension | dia. 21 |
| Return Loss Range2 | 30.2dB |
| Return Loss Range3 | 24dB |
| Washer Plating | SUCOPLATE (R) Plating |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 4GHz |
| Frequency max. Range3 | 6GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | X27 |
| Cable1 | SPUMA_195 |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight bulkhead cable jack |
| CONNECTOR SERIES | false |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3mm |
| Frequency max. Range1 | 2GHz |
| Frequency min. Range1 | 0.1GHz |
| Gender | jack |
| ID | 24_N-50-3-45/133_N |
| Impedance | 50 |
| Insulator Material | PTFE (Polytetrafluoroethylene) |
| Interface Frequency max. | 11GHz |
| Interface Standards | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 24 |
| Return Loss Range1 | 31dB |
| Weight | 0.041547kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_N-50-3-45/133_NH |
| VSWR Range 1 | 1.058 |
| OBJECT_ID | 7700568 |
