24 N-50-2-1/133 NE

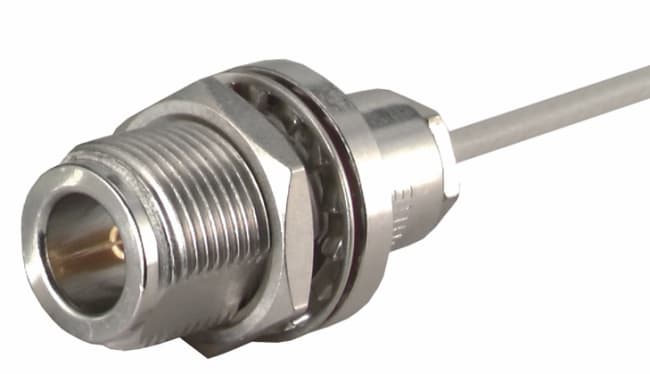

Coaxial connector
|N, 50 Ohm, Straight bulkhead cable female
| Flange Type | round flange |
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut Material | Brass |
| Panel Thickness | 4 mm |
| Washer Material | Bronze |
| Flange Dimension | dia. 21 |
| Washer Plating | SUCOPLATE (R) Plating |
| Highlight2 | With panel seal |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U2 |
| Cable Group2 | X3 |
| Cable Retention Force | 44 N |
| Cable1 | RG_316_/U |
| Cable2 | ENVIROFLEX_316 |
| Cable3 | RG_188_A/U |
| Cable5 | RG_174_/U |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead cable feed through |
| CONNECTOR SERIES | N |
| Dielectric Size | 2 mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | jack |
| Highlight1 | Rear mount chassis connector |
| ID | 24_N-50-2-1/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11 GHz |
| Interface Standards | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 24 |
| Weight | 0.0416 kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_N-50-2-1/133_NE |
| OBJECT_ID | 7450747 |
