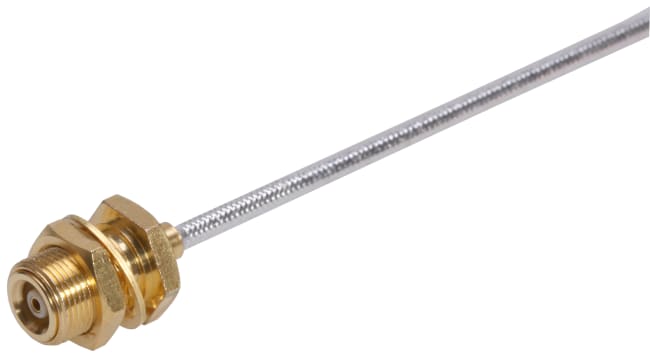

24_MMBX-50-2-2/111_NH
Coaxial connector
MMBX, 50 Ohm, Straight bulkhead cable female
| H+S | |
|---|---|
| Fastening nut | Brass / SUCOPRO Plating |
| Suitable cables | SUCOFORM_86 |
| Washer | Brass / SUCOPRO Plating |
| Product code | 24_MMBX-50-2-2/111_N |
| Insulator | PFA / PTFE / LCP |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | Y3Y16Y11 , Y3 - 2 mm / 50 OhmY16 - 2 mm / 50 OhmY11 - 2 mm / 50 Ohm |
| Standard | HUBER+SUHNER-MMBX |
| Mating cycles | 100 |
| Weight | 0.0033 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | soldered |
| Interface type | MMBX |
| Gender | jack |
| Operation temperature | -55 °C ... 155 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / SUCOPRO Plating |
| Interface frequency | 12.4 GHz |
| Body | Brass / SUCOPRO Plating |
| Cable entry centre contact | plugged |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
