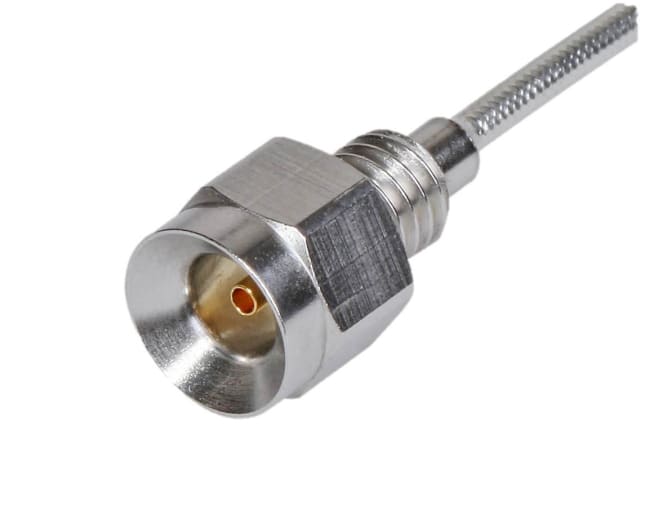

24_MBX-50-2-11/133_NH
Coaxial connector
|MBX, 50 Ohm, Straight bulkhead cable female
| Cable Group3 | Y3 |
| Chassis Torque | 1.2Nm |
| External Remarks | Because of the SUCOPLATE body slight discoloration may appear on the solder joint, which has got no influence on the specified technical characteristics of the connector/cable assembly. |
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | Y16 |
| Cable Group2 | Y11 |
| Cable1 | SUCOFORM_86 |
| Cable2 | MULTIFLEX_86 |
| Cable3 | EZ_86_CU_TP_M17 |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight panel bulkhead cable jack, flange mount |
| CONNECTOR SERIES | MBX |
| Dielectric Size | 2mm |
| Gender | jack |
| ID | 24_MBX-50-2-11/133_N |
| Impedance | 50 |
| Insulator Material | LCP (Liquid crystal polymer) |
| Interface Frequency max. | 6GHz |
| Interface Standards | HUBER+SUHNER MBX |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 50 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 24 |
| Weight | 0.005kg |
| CONNECTOR SHAPE | straight |
| Type Number | 24_MBX-50-2-11/133_NH |
| OBJECT_ID | 5876179 |
