24-G50/FSN(ZN)H-G88-G
Mechanical Thermal Properies | For high mechanical and thermal stability |
Impact Standard | IEC 60794-1-2 E4 |
Stripping | Ripcord for easy jacked removal |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | Strain relieved with aramide yarn |
Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
Fire Standard Single | IEC 60332-1-2 |
Layer Type | 1 Ripcord |
Temperature Standard | IEC 60794-1-2 F1 |
Crush Test Standard | IEC 60794-1-2 E3 |
Fire Standard Bundle | IEC 60332-3-25 |
Strength Member Type | Strength member |
Trademark | LSFH |
Class | 1032 |
Application | For direct connector assembly |

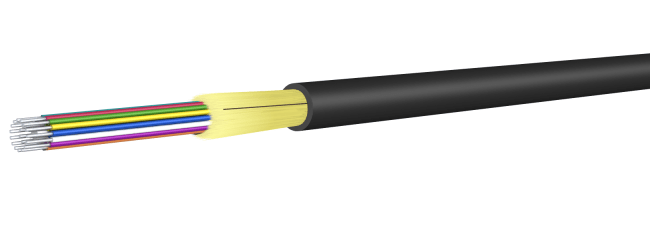

Cable Type | Metal free indoor cable |
Cable Description | Riser Cable |
Outer Jacket Type | Outer jacket / PE flame retardant |
Outer Jacket Ø | 8.8mm |
Reinforcement Type | Reinforcement / aramide yarn |
Number of max. Fibres | 24 |
Tube Type | Tight tube |
Fire behavior | Low smoke, halogen free and self-extinguishing |
ID | 24-.../FSN(ZN)H-...88 |
OBJECT_ID | 3574409 |
