| Flange Type |
hexagonal flange |
| Fastening Nut Plating |
SUCOPLATE (R) Plating |
| Fastening Nut Material |
Brass |
| Panel Thickness |
3.5 mm |
| Washer Material |
Bronze |
| Flange Dimension |
hex 17 |
| Washer Plating |
SUCOPLATE (R) Plating |
| Highlight2 |
SUHNER full crimp cable attachement |
| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U18 |
| Cable Retention Force |
367 N |
| Cable1 |
G_04233_D |
| Centre Contact Material |
Copper Beryllium Alloy |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |

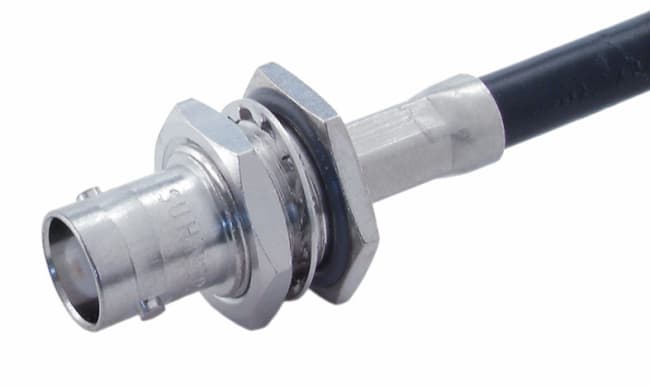

Straight bulkhead cable feed through |
| CONNECTOR SERIES |
BNC |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
4 mm |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
jack |
| Highlight1 |
Rear mount chassis connector |
| ID |
24_BNC-75-4-4/133_N |
| Impedance |
75 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
1 GHz |
| Interface Standards |
Interface compatible with IEC 61169-8 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
24 |
| Weight |
0.0161 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
24_BNC-75-4-4/133_NE |
| OBJECT_ID |
2839488 |
