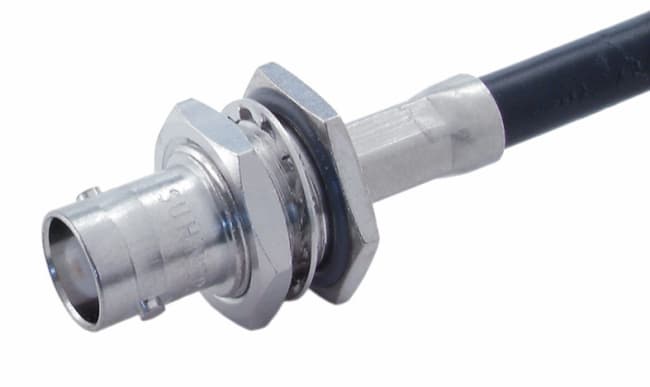

24 BNC-50-3-1/133NE

Produktnummer: 22540378
Huber Suhner
Lagerbeholdning:

Flange Type hexagonal flange
Fastening Nut Plating SUCOPLATE (R) Plating
Fastening Nut Material Brass
Panel Thickness 3.5 mm
Washer Material Bronze
Flange Dimension hex 17
Washer Plating SUCOPLATE (R) Plating
Highlight2 Rear mount chassis connector
Cable Entry Centre Contact crimped
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group U7
Cable Retention Force 129 N
Cable1 RG_58_C/U
Cable2 GX_03272
Cable3 G_03232
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight bulkhead cable feed through
CONNECTOR SERIES BNC
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 3 mm
Gasket Material VMQ (Silicone rubber)
Gender jack
Highlight1 SUHNER full crimp cable attachement
ID 24_BNC-50-3-1/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 4 GHz
Interface Standards IEC 60169-8_MIL-STD-348A/301_CECC 22120
Junction cable
2011/65/EC (RoHS) compliant
Mounting bulkhead
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 24
Weight 0.0163 kg
CONNECTOR SHAPE straight
Type Number 24_BNC-50-3-1/133_NE
OBJECT_ID 4608894
