24_BNC-50-1-6/133_NH

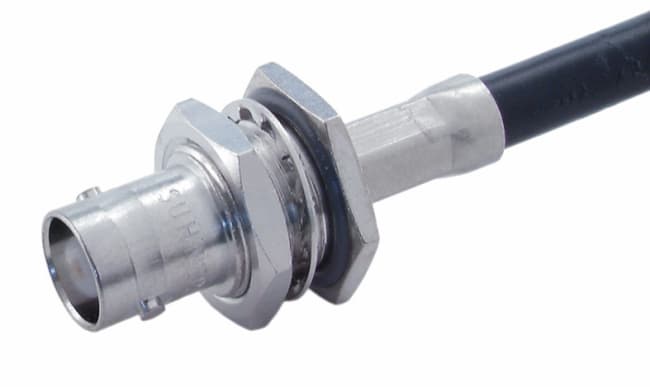

Coaxial connector
BNC, 50 Ohm, Straight bulkhead cable female
| H+S | |
|---|---|
| Fastening nut | Brass / SUCOPLATE (R) Plating |
| Suitable cables | RG_196_A/U |
| Washer | Bronze / SUCOPLATE (R) Plating |
| Product code | 24_BNC-50-1-6/133_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium / Brass / Gold Plating (Nickel underplated) |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | U1 , U1 - 1 mm / 50 Ohm |
| Crimp ferrule | Copper / SUCOPLATE (R) Plating |
| Standard | IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
| Mating cycles | 500 |
| Weight | 0.0166 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | crimped |
| Gender | jack |
| Operation temperature | -65 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Interface frequency | 4 GHz |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | crimped |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
