| Flange Type |
hexagonal flange |
| Fastening Nut Plating |
SUCOPLATE (R) Plating |
| Fastening Nut Material |
Brass |
| Panel Thickness |
3.5 mm |
| Washer Material |
Bronze |
| Flange Dimension |
hex 17 |
| Washer Plating |
SUCOPLATE (R) Plating |
| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
clamped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U1 |
| Cable Retention Force |
32 N |
| Cable1 |
RG_178_B/U |
| Cable2 |
ENVIROFLEX_178 |
| Cable3 |
RG_196_A/U |
| Centre Contact Material |
Copper Beryllium Alloy |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |
| Connector Description |
Straight bulkhead cable feed through |
| CONNECTOR SERIES |
BNC |
| Dielectric Size |
1 mm |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
jack |
| Highlight1 |
Rear mount chassis connector |
| ID |
24_BNC-50-1-1/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
4 GHz |
| Interface Standards |
IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
24 |
| Weight |
0.0204 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |

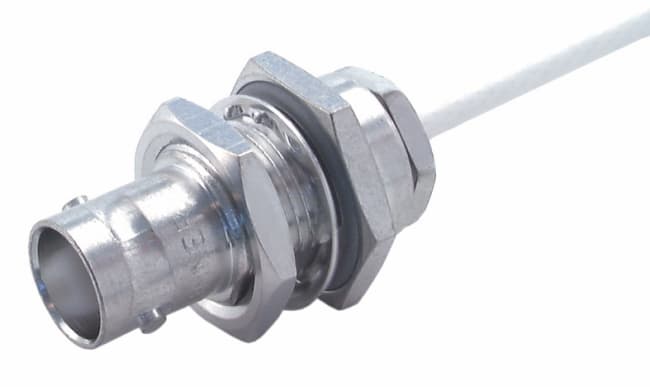

24_BNC-50-1-1/133_NE |
| OBJECT_ID |
1598556 |
